点击放大查看

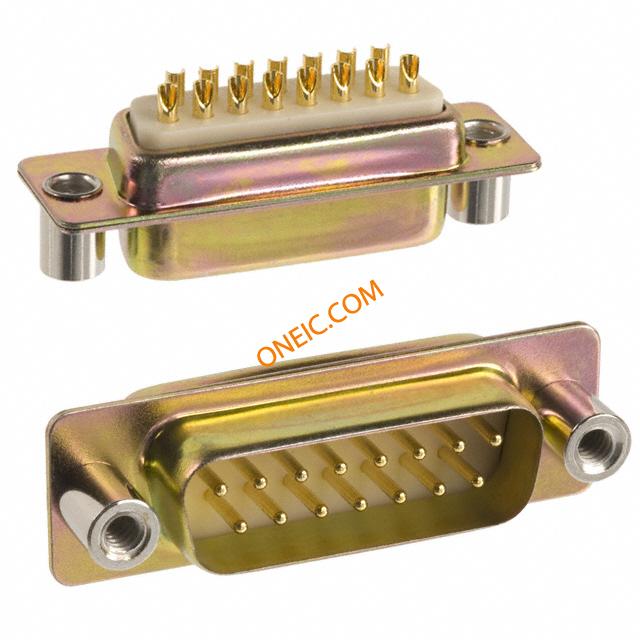

172-E15-101-031
| Manufacturer | |
| Description | CONN DB15 MALE SOLDER CUP CHROME |
| Category |
Business
| Standard Package | 50 | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | White | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Mating Side (4-40) |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT) | Number of Positions | 15 |
| Shell Material, Finish | Steel, Yellow Chromate Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
