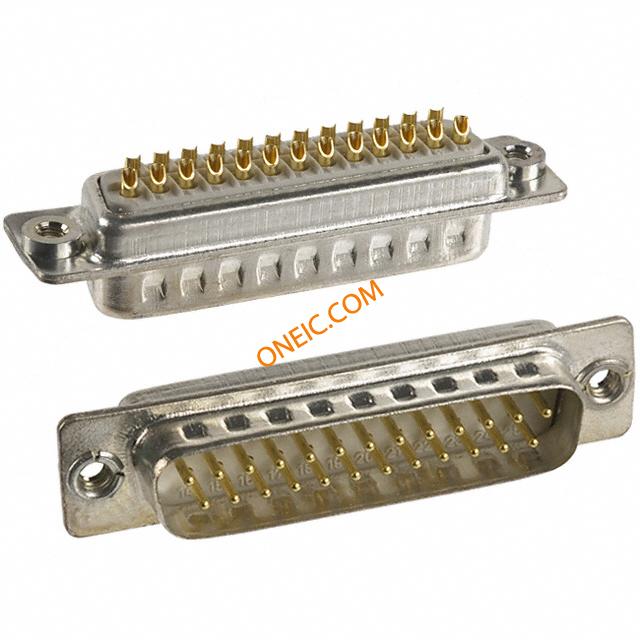

172-025-102R011
| Manufacturer | |
| Description | CONN DB25 MALE SOLDER CUP TIN D-Sub Standard Connectors 25POS Male 5A Steel |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 25 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | Beige | Packaging | Tray |
| Insulation | Insulated | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Free Hanging (In-Line); Panel Mount |
| Shell Plating | Tin | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Board Side (4-40) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT), Polyester |
| Termination Style | Solder | Number of Contacts | 25 |
| Insulation Material | Thermoplastic, Glass-Filled | Number of Positions | 25 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Gender | Male | Series | 172 |
| Features | Grounding Indents | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
