FBA09A24H1AZ

Manufacturer	MinebeaMitsumi Inc.
Description	FAN 24VDC W 92MM HYDROWAVE
Category	Hardware and Thermal SolutionsDC FansBlowers

对参数有疑问？问 AI 助手

Business

Standard Package

100

Electrical

Noise	35 dB	Power (Watts)	3.36W
Voltage Range	14 ~ 27.6VDC	Voltage Rating	24VDC
Current Rating (Max)	0.140A

Mechanical

RPM	2900 RPM	Weight	0.243 lb (110.22g)
Air Flow	56.8 CFM (1.61m³/min)	Fan Type	Tubeaxial
Termination	2 Wire Leads	Bearing Type	Hydro-wave (HWB)
Static Pressure	0.169 in H2O (42.1 Pa)	Size / Dimension	Square - 92mm L x 92mm H x 25.5mm W

Environmental

Rated Life

50000 hrs @ 40°C

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)

Documents & Media

PDF Document

FB Series Part Number Guide

PDF Document

FBA09A

Similar Parts

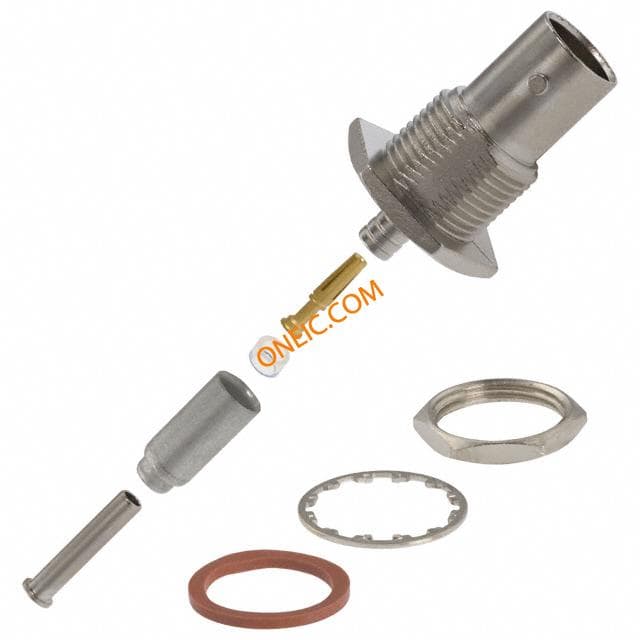

413590-8
