FBA06A12L1BX

Manufacturer	MinebeaMitsumi Inc.
Description	DC Fan Hydro Wave Bearing 12V 0.1A 1.2W 3200RPM 14.1CFM 24dB Flange Mount FAN 12VDC W 60MM HYDROWAVE
Category	Hardware and Thermal SolutionsDC FansBlowers

对参数有疑问？问 AI 助手

Business

Lead Time	365 Days	Other Names	P11034
Subcategory	Blowers and Fans	Standard Package	100

Compliance

RoHS

Lead free / RoHS Compliant

EU RoHS

Compliant

Electrical

Noise	24 dB	Speed	Counter Clockwise
Input Range	7 to 13.8	Power (Watts)	1.20W
Power - Rated	1.2	Voltage Range	7 ~ 13.8VDC
Voltage Rating	12VDC	Current - Output	0.1
Current Rating (Max)	0.100A

Mechanical

RPM	3200 RPM	Depth	60
Height	25.5	Weight	0.198 lb (89.81g)
Air Flow	14.1 CFM (0.399m³/min)	Fan Type	Tubeaxial
Termination	Lead Wire	Bearing Type	Hydro Wave
Mounting Type	Flange Mount	Static Pressure	0.122 in H2O (30.4 Pa)
Length - Overall	60	Maximum Pressure	0.12inH2O
Size / Dimension	Square - 60mm L x 60mm H x 25.5mm W

Product Info

Features	Speed Sensor (Tach)	Industry Aliases	FBA06A 12L1BX
For Use With/Related Products	2410SB-04W-B29-B50

Environmental

Rated Life

50000 hrs @ 40°C

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)

Documents & Media

PDF Document

FB Series Part Number Guide

Similar Parts

612NHH-118

ebm-papst

DC Fan Ball Bearing 12V 2.9W 6800RPM 33CFM 41dB Flange Mount Fans 12V 2.9W 6800RPM 33CFM 41dB Fan;DC;12V;60x60x25mm;Sq;33CFM;3W;41dBA;Leadwires ebm-papst 600N 系列直流轴流风扇, 56m³/h, 12 V 直流, 2.9W, 60 x 60 x 25.4mm

$246.1131

Details

175778-3

te connectivity / amp

Conn Housing RCP 3 POS 2mm Crimp ST 2mm AMP CT CONN RECEPT 3POS 2MM CRIMP Receptacle crimp housing, 2mm, 3 way, CT Headers & Wire Housings 3P CRIMP RCPT HSG Conn Housing RCP 3 POS 2mm Crimp ST Product Highlights:ConnectorConnector Type = Blindmate, CrimpMating Type = ReceptacleNumber of Positions = 3Number of Rows = 1 CONNECTOR, RECEPTACLE, 2MM, 3WAY CONNECTOR,RECEPTACLE,BLINDMATE,CRIMP,3POSITION,1ROW,CT TE Connectivity AMP CT 系列 2mm 节距 3 路直母电缆安装压接连接器外壳

$0.4420

Details

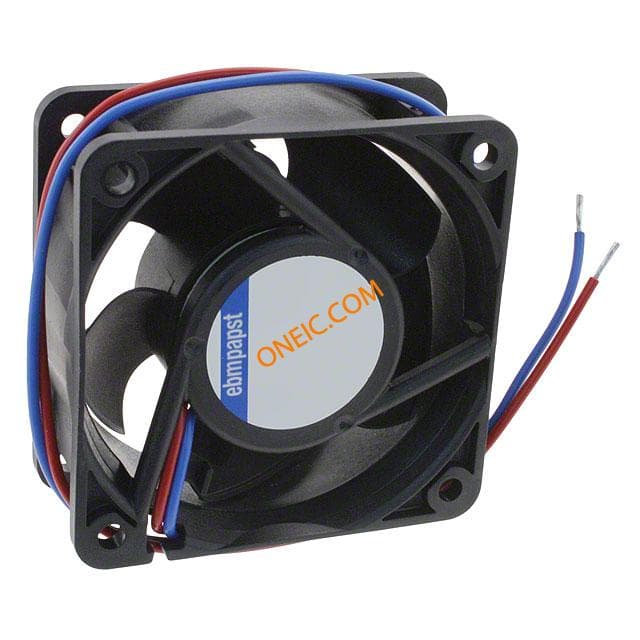

622HH
