4712KL-04W-B50-P00
| Manufacturer | |
| Description | FAN DC AXIAL 12V 119X32 3100 RPM |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 98 Days | Subcategory | Blowers and Fans |
| Standard Package | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Noise | 50.5 dB | Power (Watts) | 10.2W |
| Voltage Range | 6 ~ 13.8VDC | Voltage Rating | 12VDC |
| Current Rating (Max) | 0.850A | ||
Mechanical
| RPM | 3300 RPM | Weight | 0.529 lb (239.95g) |
| Air Flow | 120.0 CFM (3.39m³/min) | Fan Type | Tubeaxial |
| Termination | 2 Wire Leads | Bearing Type | Ball |
| Static Pressure | 0.373 in H2O (93.0 Pa) | Material - Blade | Plastic |
| Material - Frame | Plastic | Size / Dimension | Square - 119mm L x 119mm H x 32mm W |
Environmental
| Rated Life | 100000 hrs @ 25°C | Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Documents & Media
Similar Parts

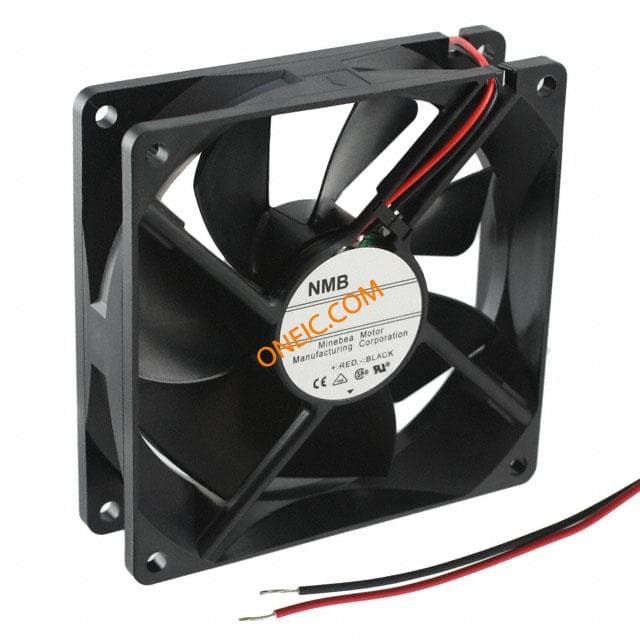

3610KL-04W-B60-D00
