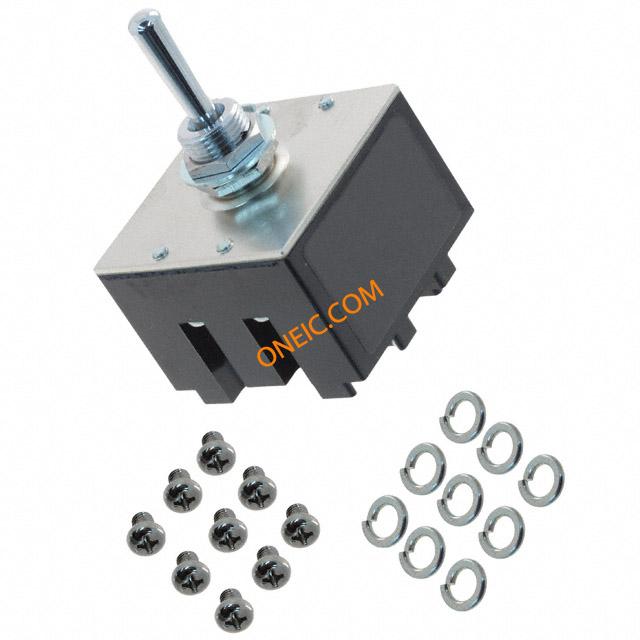

S833
| Manufacturer | |
| Description | Switch Toggle ON OFF ON 3PDT Round Toggle Screw Lug 30A 250VAC 30VDC Panel Mount with Threads SWITCH TOGGLE 3PDT 30A 125V SWITCH, TOGGLE, 3PDT, 30A, 250VAC 3PDTONOFFON,HighCapacity,.866InBatwith12mmBushing,ScrewLug |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 15 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | 3PDT | Voltage Rating | 125V |
| Switch Function | On-Off-On | Current Rating (Max) | 30A (AC/DC) |
| Current - Max/Contact | :30A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON OFF ON | Connector - Voltage Input | :Screw |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 43 | Height | 68 |
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount with Threads |
| Terminal Type | Screw Lug | Bushing Thread | M12 x 1 |
| Contact Finish | Silver | Actuator Length | 22.00mm |
| Contact Material | Silver Alloy/Copper | Length - Overall | 42 |
| Actuator Material | Brass, Chrome Plated | Termination Style | Screw Terminal |
| Actuator Style/Size | Round Toggle | Switch Actuation Level | 3PDT |
| Contact Layout, Typical | :3PDT | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Type | High Capacity Standard Size | Illumination | Non-Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Mechanical Life | 50000 | Operating Temperature | -10°C ~ 70°C |
Documents & Media
PDF Document
