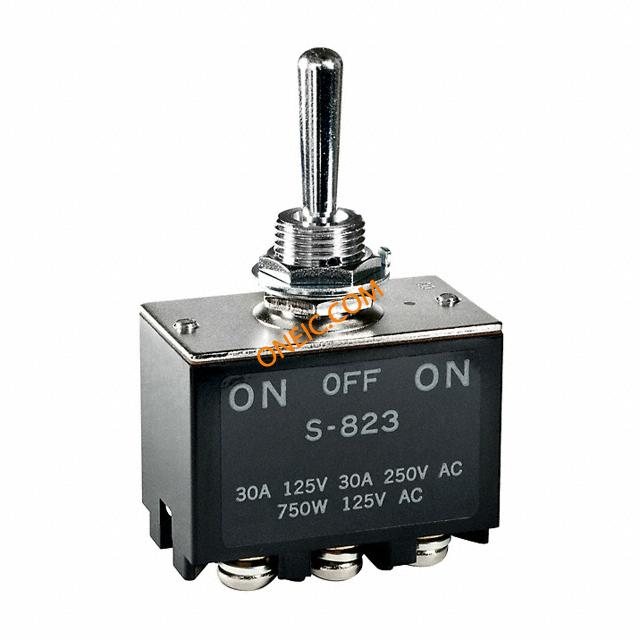

S823/328
| Manufacturer | |
| Description | SWITCH TOGGLE DPDT SCREW LUG SWITCH TOGGLE DPDT 30A 125V SWITCH, TOGGLE, DPDT, 30A, 250VAC DPDTONOFFON,HighCapacity,.866InBatwith12mmBushing,ScrewLug |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85365080 |
Electrical
| Circuit | DPDT | Voltage Rating | 125V |
| Switch Function | On-Off-On | Current Rating (Max) | 30A (AC/DC) |
| Current - Max/Contact | :30A | Switch Function/Rating | :On-Off-On |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Actuator Length | 22.00mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Screw Terminal |
| Actuator Style/Size | :Toggle | Contact Layout, Typical | :DPDT |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Features | Low Temperature Lubricant | Illumination | Non-Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Operating Temperature | -30°C ~ 70°C | ||
Documents & Media
Similar Parts
AT506M
NKK Switches
Switch Accessories 12MM LOCKING RING Switch Access Locking Ring RING LOCKING FOR M/MB20/SB SER LOCKING RING LOCKINGRING,METRIC,STEELW/ZINCCHROM
AT527M
NKK Switches
Switch Accessories HEX MOUNTING NUT Switch Access Hex Mounting Nut NUT MNT HEX METRIC M/P/S/SB/SK HEX NUT, PUSHBUTTON SWITCH HEXMOUNTINGNUT,STEELW/NICKEL

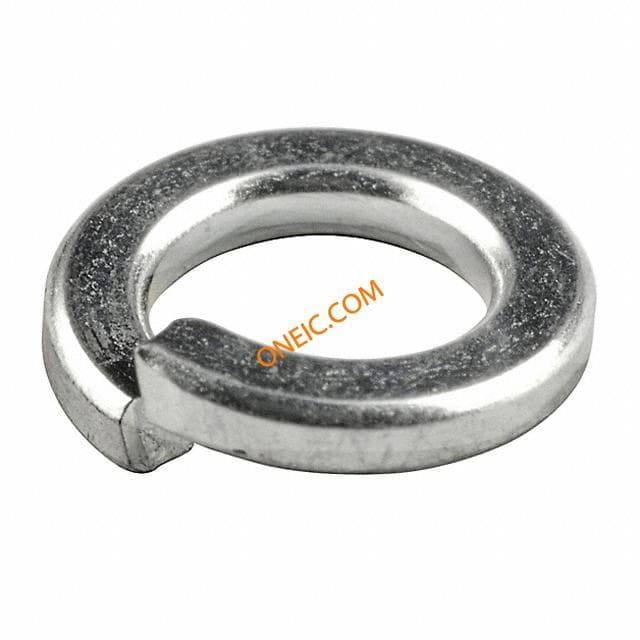

AT081C
NKK Switches
Switch Accessories WASHER S-100 WASHER S800 TYPE SPLIT RING
AT503M
NKK Switches
Switch Accessories 12MM HEX FACED NUT Switch Access Hex Face Nut NUT HEX FACE METRIC M12 HEX NUT, PUSHBUTTON SWITCH

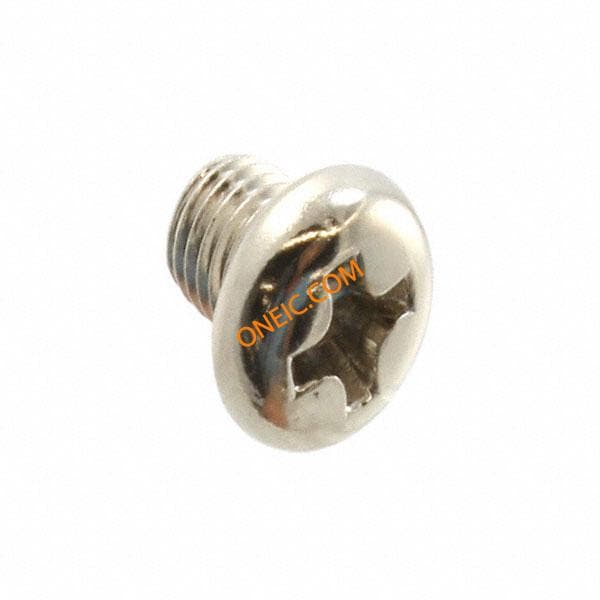

AT082C
