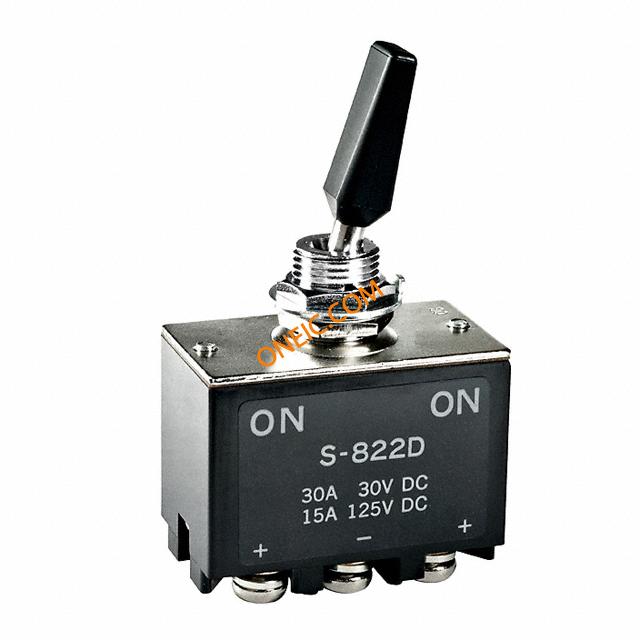

S822D
| Manufacturer | |
| Description | Switch Toggle ON None ON DPDT Flat Lever Screw Lug 30A 250VDC Panel Mount with Threads SWITCH TOGGLE DPDT 30A 30V SWITCH, TOGGLE, DPDT, 30A Switch,Toggle |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | DPDT | Voltage Rating | 30V |
| Switch Function | On-On | Current Rating (Max) | 30A (DC) |
| Current - Max/Contact | :30A | Switch Function/Rating | ON None ON |
| Connector - Voltage Input | :Screw | Voltage - Supply (Vcc/Vdd) | :48V |
| Voltage - DC Spark Over (Nom) | 250V VDC | ||
Mechanical
| Depth | 24 mm | Height | 73 mm |
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Flatted | Mounting Type | Panel Mount with Threads |
| Terminal Type | Screw Lug | Bushing Thread | M12 x 1 |
| Contact Finish | Silver | Actuator Length | 27.00mm |
| Contact Material | Silver Alloy/Copper | Length - Overall | 42 mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Screw Terminal |
| Actuator Style/Size | Flat Lever | Switch Actuation Level | DPDT |
| Contact Layout, Typical | :DPDT | Panel Cutout Dimensions | Circular - 12.50mm Dia |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | High Capacity Standard Size | Illumination | Non-Illuminated |
| Electrical Life | 10,000 Cycles | ||
Environmental
| Mechanical Life | 50000 | Operating Temperature | -10°C ~ 70°C |
| Operating Temperature - Junction | 70C | ||
Documents & Media
Similar Parts
AT506M
NKK Switches
Switch Accessories 12MM LOCKING RING Switch Access Locking Ring RING LOCKING FOR M/MB20/SB SER LOCKING RING LOCKINGRING,METRIC,STEELW/ZINCCHROM
AT527M
NKK Switches
Switch Accessories HEX MOUNTING NUT Switch Access Hex Mounting Nut NUT MNT HEX METRIC M/P/S/SB/SK HEX NUT, PUSHBUTTON SWITCH HEXMOUNTINGNUT,STEELW/NICKEL

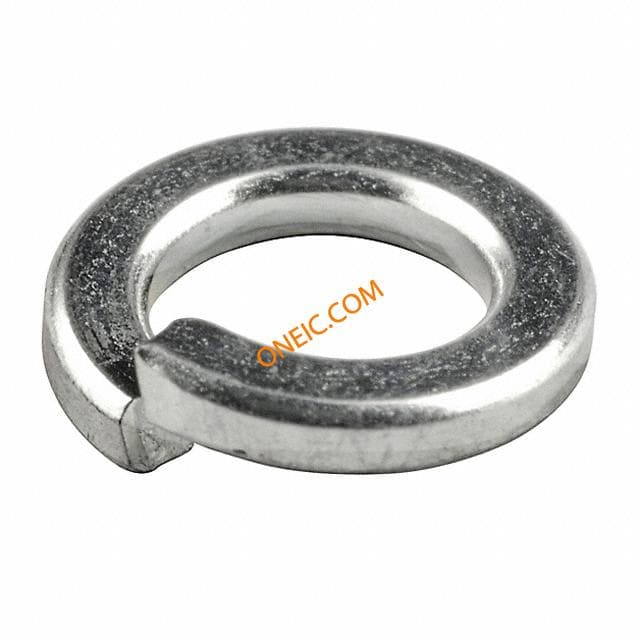

AT081C
NKK Switches
Switch Accessories WASHER S-100 WASHER S800 TYPE SPLIT RING
AT503M
NKK Switches
Switch Accessories 12MM HEX FACED NUT Switch Access Hex Face Nut NUT HEX FACE METRIC M12 HEX NUT, PUSHBUTTON SWITCH

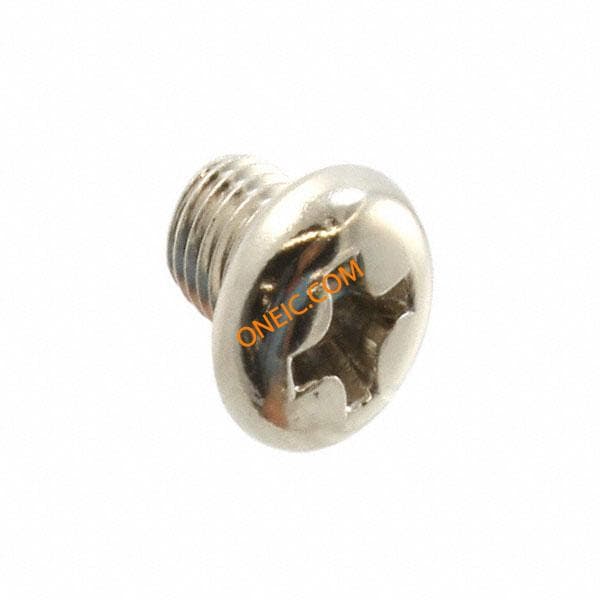

AT082C
