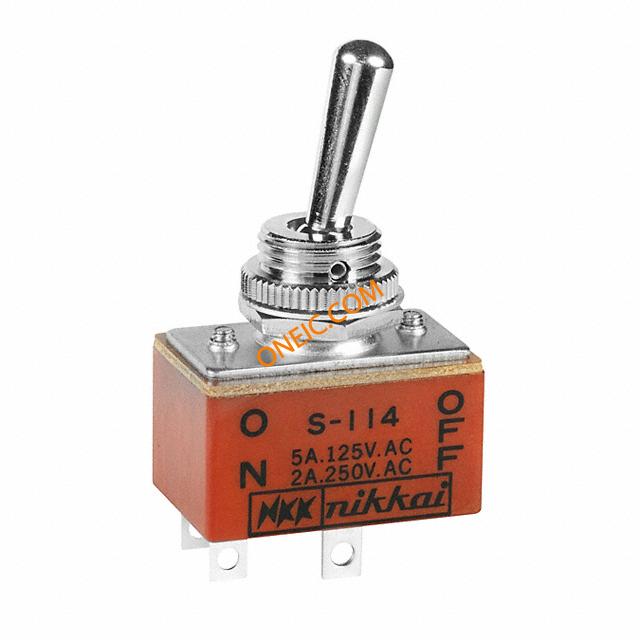

S114
| Manufacturer | |
| Description | Toggle Switches DPST ON NONE OFF 5A Switch Toggle ON None OFF DPST Round Toggle Solder Lug 5A 250VAC 30VDC Panel Mount with Threads SWITCH TOGGLE DPST 5A 125V SWITCH, TOGGLE, DPST, 5A, 125VAC Switch,Toggle,DPST,ON-NONE-OFF,5A |
| Category |
Business
| Part # Aliases | S-114 | Product Category | Toggle Switches |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | DPST | Voltage Rating | 125V |
| Switch Function | On-Off | Current Rating (Max) | 5A (AC/DC) |
| Current - Max/Contact | :5A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON None OFF | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | 17.6 | Height | 50.9 |
| Weight | 0 | Packaging | Bulk |
| Contact Form | DPST | Actuator Type | Standard Round |
| Mounting Type | Panel Mount with Threads | Terminal Type | Solder Lug |
| Bushing Thread | M12 x 1 | Contact Finish | Silver |
| Mounting Style | Through Hole | Actuator Length | 18.00mm |
| Contact Material | Silver Alloy/Copper | Length - Overall | 27.8 |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Actuator Style/Size | Round Toggle | Bushing, Grommet Type | M12 |
| Switch Actuation Level | DPST | Contact Layout, Typical | :DPST |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Type | Low Capacity Standard Size | Series | S |
| Illumination | Non-Illuminated | Electrical Life | 10,000 Cycles |
Environmental
| Seal Rating | Sealed | Mechanical Life | 30000 |
| Operating Temperature | -10°C ~ 70°C | ||
