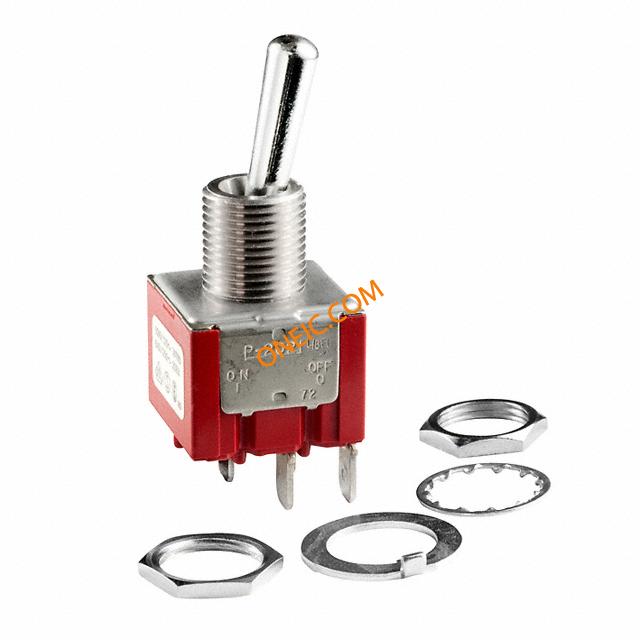

P2021BZ
| Manufacturer | |
| Description | SWITCH TOGGLE DPST .187" QC SWITCH TOGGLE DPST 10A 125V SWITCH, TOGGLE, DPST, 10A, 125VAC DPSTONNONEOFF,.689InLargeBatwith12mmBushing,.187InQuickConnect |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| Tariff No | 85365080 | ||
Electrical
| Circuit | DPST | Voltage Rating | 125V |
| Switch Function | On-Off | Current Rating (Max) | 10A (AC) |
| Current - Max/Contact | :10A | Switch Function/Rating | :On-None-Off |
| Connector - Voltage Input | :Solder | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Actuator Length | 17.50mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Quick Connect - 0.187" (4.7mm) |
| Actuator Style/Size | :Bat | Contact Layout, Typical | :DPST |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | 1st Connector Mounting Type | :Panel |
Product Info
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Operating Temperature | -10°C ~ 85°C | ||
Documents & Media
PDF Document
