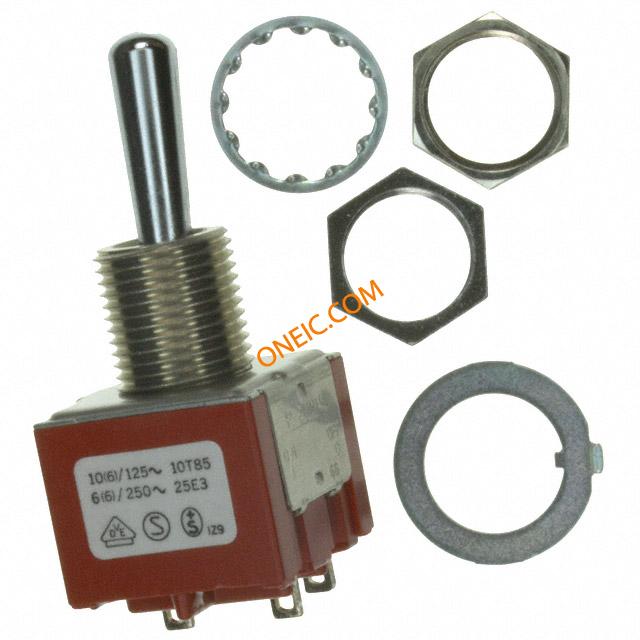

P2021B
| Manufacturer | |
| Description | Switch Toggle ON None OFF DPST Large Bat Toggle Solder Lug 10A 250VAC Panel Mount with Threads SWITCH TOGGLE DPST 10A 125V SWITCH, TOGGLE, DPST, 10A, 125VAC DPSTONNONEOFF,.689InLargeBatwith12mmBushing,SolderLug |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365080 | ||
Electrical
| Circuit | DPST | Voltage Rating | 125V |
| Switch Function | On-Off | Current Rating (Max) | 10A (AC) |
| Current - Max/Contact | :10A | Voltage - Input (Min) | 250 |
| Switch Function/Rating | ON None OFF | Connector - Voltage Input | :Solder |
| Voltage - Rated AC (Phase to Ground/Neutral) | :125V | ||
Mechanical
| Depth | 20 | Height | 50.6 |
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount with Threads |
| Terminal Type | Solder Lug | Bushing Thread | M12 x 1 |
| Contact Finish | Silver | Actuator Length | 17.50mm |
| Contact Material | Silver Alloy | Length - Overall | 20.5 |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Actuator Style/Size | Large Bat Toggle | Switch Actuation Level | DPST |
| Contact Layout, Typical | :DPST | Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Material - Housing & Prism | Diallyl Phthalate Resin/N/A | 1st Connector Mounting Type | :Panel |
Product Info
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Mechanical Life | 100000 | Operating Temperature | -10°C ~ 85°C |
