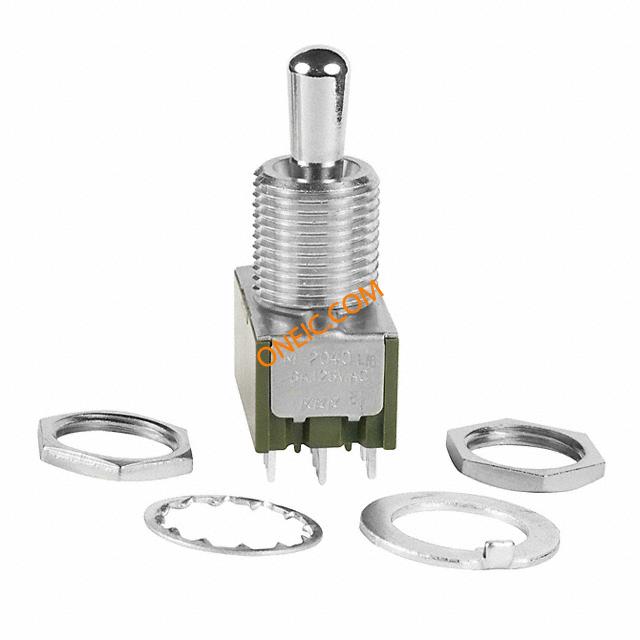

M2044BB1W01
| Manufacturer | |
| Description | SWITCH TOGGLE DP3T 6A STR SLDR SWITCH TOGGLE DP3T 6A 125V SWITCH, TOGGLE, DP3T, 6A, 125VAC DP3TONONON,.453InLargeBat,Large.472InThreadedwithKeyway,SilverRated |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| Tariff No | 85365080 | ||
Electrical
| Circuit | DP3T | Voltage Rating | 125V |
| Switch Function | On-On-On | Current Rating (Max) | 6A (AC), 3A (DC) |
| Current - Max/Contact | :6A | Switch Function/Rating | :On-On-On |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :30V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :125V | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Actuator Length | 11.50mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Actuator Style/Size | :Bat | Contact Layout, Typical | :DP3T |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Operating Temperature | -30°C ~ 85°C | ||
