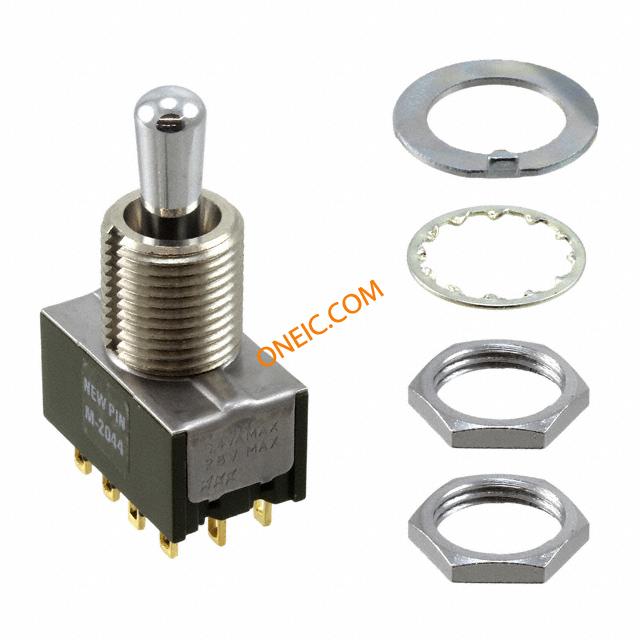

M2044BB1G01
| Manufacturer | |
| Description | MINIATURE TOGGLE/MULTI-FUNCTION Toggle Switches 6A@125VAC/3A@250VAC DP3T ON ON ON SWITCH TOGGLE DP3T 0.4VA 28V DP3TONONON,.453InLargeBat,Large.472InThreadedwithKeyway,SilverRated |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Circuit | DP3T | Power - Rated | 0.4 VA |
| Voltage Rating | 28V | Switch Function | On-On-On |
| Current Rating (Max) | 0.4VA (AC/DC) | ||
Mechanical
| Packaging | Bulk | Contact Form | 4PDT |
| Actuator Type | Standard Round | Mounting Type | Panel Mount |
| Bushing Thread | M12 x 1 | Contact Finish | Gold |
| Mounting Style | Panel | Actuator Length | 11.50mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Bushing, Grommet Type | 12 mm | Mounting Hole Diameter | 6.5 mm |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Series | M TOGGLE | Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Electrical Life | 50,000 Cycles |
Environmental
| Seal Rating | Sealed | Operating Temperature | -30°C ~ 85°C |
