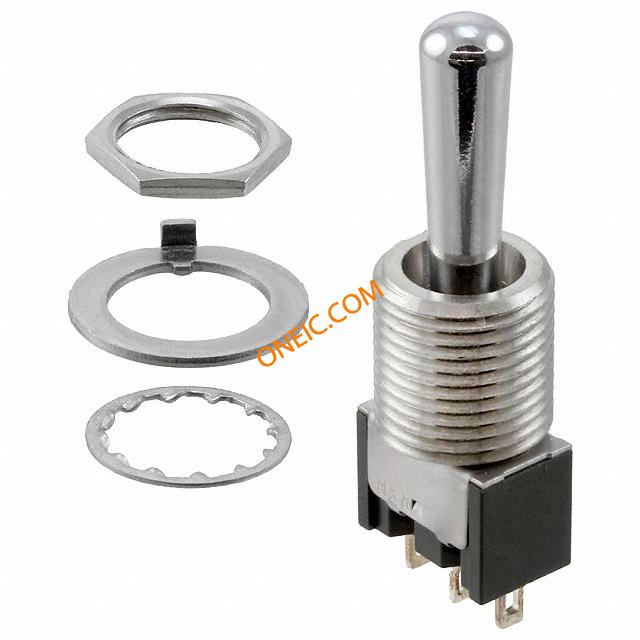

M2019B2B1W01
| Manufacturer | |
| Description | MINIATURE TOGGLE/MULTI-FUNCTION SWITCH TOGGLE SPDT 6A 125V SPDTONOFF(ON),.689InLargeBat,Large.472InThreadedwithKeyway,SilverRa |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPDT | Voltage Rating | 125V |
| Switch Function | On-Off-Mom | Current Rating (Max) | 6A (AC), 3A (DC) |
Mechanical
| Packaging | Bulk | Actuator Type | Standard Round |
| Mounting Type | Panel Mount | Bushing Thread | M12 x 1 |
| Actuator Length | 17.50mm | Actuator Material | Brass, Chrome Plated |
| Termination Style | Solder Lug | Panel Cutout Dimensions | Circular - 12.50mm Dia |
Product Info
| Features | Epoxy Sealed Terminals | Illumination | Non-Illuminated |
| Electrical Life | 25,000 Cycles | ||
Environmental
| Operating Temperature | -30°C ~ 85°C | ||
