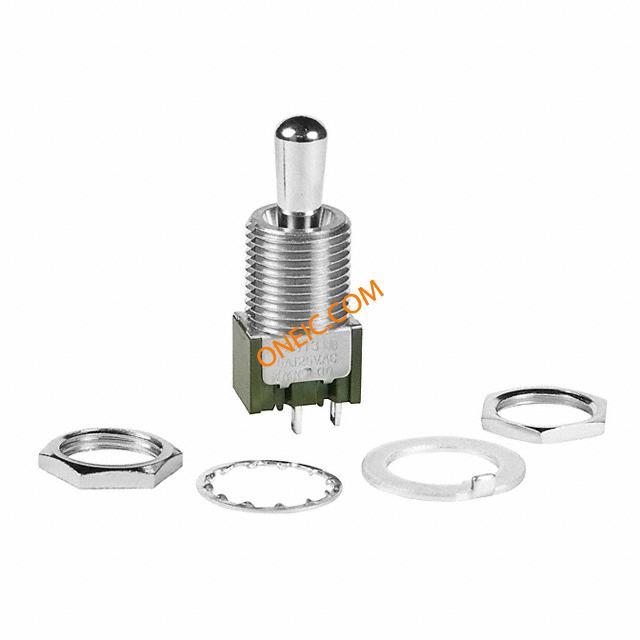

M2013BB1W01
| Manufacturer | |
| Description | SWITCH TOGGLE SPDT 6A SOLDER MNT SWITCH TOGGLE SPDT 6A 125V SWITCH, TOGGLE, SPDT, 6A, 125VAC SWITCH,TOGGLE,SUBMINIATURE,LARGELEVER,BUSHINGW/SOLDERLUGTERMINALS,SPDT |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 50 | ||
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85365080 |
Electrical
| Circuit | SPDT | Operation | OnOffOn |
| Voltage Rating | 125V | Number of Poles | 1 |
| Switch Function | On-Off-On | Dielectric Strength | 1500VAC |
| Current Rating (Max) | 6A (AC), 3A (DC) | Current - Max/Contact | :6A |
| Switch Function/Rating | :On-Off-On | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Body Finish | Miniature | Termination | SolderLugs |
| Contact Form | SPDT | Actuator Type | Standard Round |
| Mounting Type | Panel Mount | Bushing Thread | M12 x 1 |
| Mounting Style | Panel | Actuator Length | 11.50mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Actuator Style/Size | :Bat | Number of Positions | 3 |
| Mounting Hole Diameter | 0.492In. | Contact Layout, Typical | :SPDT |
| Panel Cutout Dimensions | Circular - 12.50mm Dia | ||
Product Info
| Type | Toggle | Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Electrical Life | 25,000 Cycles |
Environmental
| Operating Temperature | -30°C ~ 85°C | ||
