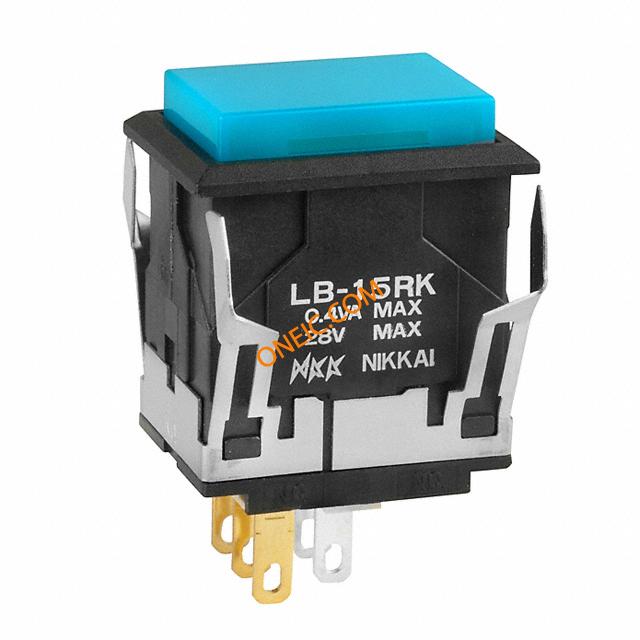

LB15RKG01-28-GJ
| Manufacturer | |
| Description | Pushbutton Switches ON-(ON) RECT 12V LMP BLUE LENS/CLR FILTER PUSHBUTTONSPDT MOMRECTANGULARBLACKGOLD SOLDER LUG28 VOLTBLUEFILTER SWITCH PUSH SPDT 0.4VA 28V Switch,Pushbutton;SPDT;ON {ON};Rectangular;Black;0.4VA @ 28V AC/VDC;LED;Blue Lens/Clear Filter Cap Switch,Pushbutton,SPDT,Momentary,Rectagular,Black,28Volt,BlueFilter |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pushbutton Switches | Standard Package | 1 |
Compliance
| RoHS | Not Applicable | Material Flammability Rating | UL 94 V-0 |
Electrical
| Circuit | SPDT | Operation | On-(On) |
| Optic Size | T-1 Bi-pin | Power - Rated | 0.4 VA |
| Voltage Rating | 28V | Number of Poles | 1 |
| Switch Function | On-Mom | Dielectric Strength | 1500VAC |
| Current Rating (Max) | 0.4VA (AC/DC) | Illumination Voltage (Nominal) | 28 VAC |
Mechanical
| Packaging | Bulk | Body Finish | Standard |
| Termination | Solder/QCTabs | Contact Form | SPDT |
| Actuator Type | Rectangular, Button | Mounting Type | Panel Mount, Snap-In |
| Contact Finish | Gold | Mounting Style | Panel |
| Housing Material | Polyamide, Glass Fiber Reinforced | Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Illumination Color | Clear | Number of Positions | 2 |
| Color - Actuator/Cap | Blue | Mounting Hole Diameter | 0.866" |
| Panel Cutout Dimensions | Rectangular - 22.40mm x 16.20mm | Illumination Type, Color | Incandescent, Blue |
Product Info
| Type | Standard, Illuminated | Series | LB |
| Features | Illuminated | Illumination | LED |
| Electrical Life | 100,000 Cycles | ||
Environmental
| Seal Rating | Epoxy | Mechanical Life | 1,000,000 Cycles |
| Operating Temperature | -25°C ~ 50°C | ||
