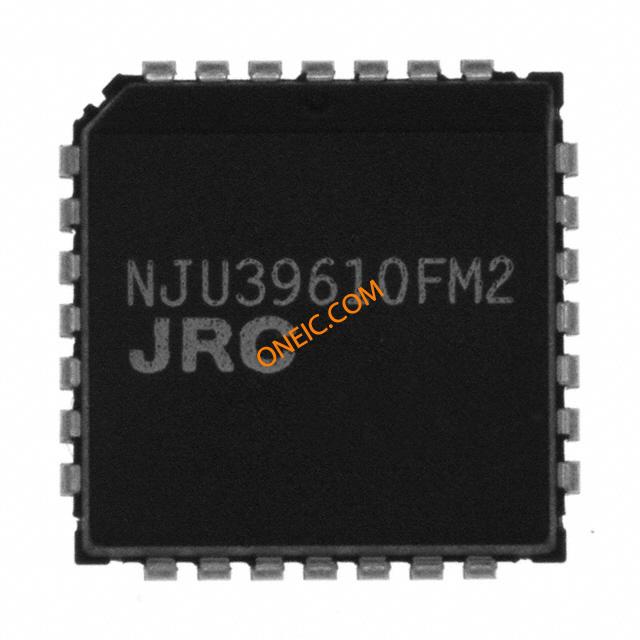

NJU39610FM2
| Manufacturer | |
| Description | Motor / Motion / Ignition Controllers & Drivers Microstepping Motor Controller w/DAC IC MOTOR CONTROLLER PAR 28PLCC NJU39610FM2, Stepper Motor Controller, Microstep,, 5V, 28-Pin PLCC, PLCC M2 Microstepping Motor Controller 5V 28-Pin PLCC-M2 New Japan Radio 电机控制器 , 用于Stepper, 4.75 → 5.25 V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Stepper Motor Controllers / Drivers | Tradename | NJU39 |
| Product Category | Motor / Motion / Ignition Controllers & Drivers | Standard Package | 40 |
| Factory Pack Quantity | 40 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Interface | Parallel | Voltage Rating | 4.75 V |
| Current - Output | 1 uA | Current - Supply | 1 uA |
| Voltage - Supply | 6 V | Voltage - Supply (Min) | 5.25 V |
Mechanical
| Width | 11.51mm | Height | 3.59mm |
| Length | 11.51mm | Packaging | Tube |
| Motor Type | 步进器 | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 28 |
| Package / Case | PLCC-28 | Package Cooled | PLCC, PLCC M2 |
| Connector Usage | Parallel | Package Quantity | PLCC |
| Size / Dimension | 11.51 x 11.51 x 3.59mm | Number of Positions | 28 |
| Supplier Device Package | 28-PLCC | ||
Product Info
| Type | Micro Stepping Motor Controller with Dual DAC | Series | NJU39610 |
| Function | Controller - Commutation, Direction Management | Applications | General Purpose |
| Manufacturer | NJR | Motor Type - Stepper | Bipolar |
| Output Configuration | Pre-Driver | Application Specifics | Microstepping Motor Driver |
Environmental
| Operating Temperature | - 20 C to + 85 C | ||
