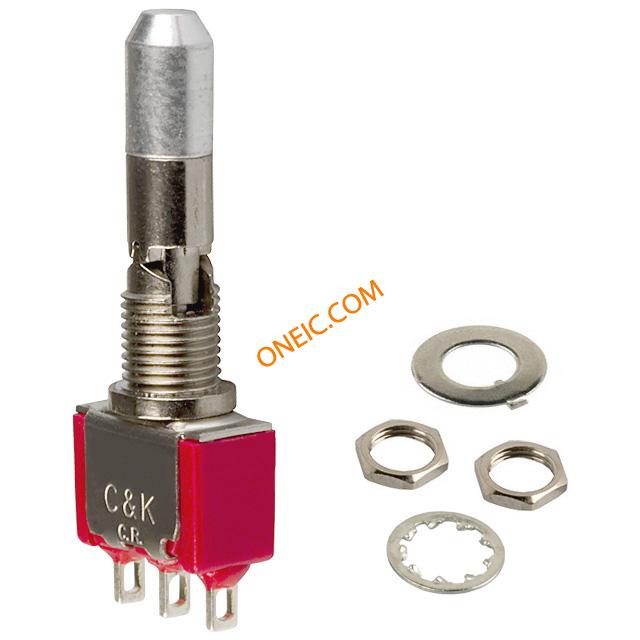

7105K2ZQE
| Manufacturer | |
| Description | Switch Toggle Mom OFF Mom SPDT Locking Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads Toggle SWITCH TOGGLE SPDT 5A 120V Switch,LOCKINGToggle,SPDT,MOM.-OFF-MOM.,PNL-MNTED,5A@120VACOR28VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Lead Time | 49 Days |
| Unit Pack | 1 | Subcategory | Switch Toggle |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPDT | Operation | (On)Off(On) |
| Voltage Rating | 28 V | Number of Poles | 1 |
| Switch Function | Mom-Off-Mom | Contact Resistance | 10Milliohms(Max.) |
| Dielectric Strength | 1000V | Current Rating (Max) | 5@120VAC 28VDC A |
| Insulation Resistance | 10^9Ohms(Min.) | Voltage - Input (Min) | 250 V |
| Switch Function/Rating | Mom OFF Mom | ||
Mechanical
| Depth | 6.86 | Height | 39.22 |
| Packaging | Bulk | Body Finish | Miniature |
| Termination | SolderLugs | Contact Form | SPDT |
| Actuator Type | Locking Lever | Mounting Type | Panel Mount with Threads |
| Terminal Type | Solder Lug | Bushing Thread | 1/4-40 |
| Contact Finish | Silver | Mounting Style | Panel |
| Actuator Length | 17.88mm | Material - Body | GlassFilledNylon |
| Contact Material | Coin Silver | Length - Overall | 12.7 |
| Actuator Material | Aluminum | Termination Style | Solder Lug |
| Actuator Style/Size | Locking Lever | Number of Positions | 3 |
| Switch Actuation Level | SPDT | Panel Cutout Dimensions | Circular - 6.35mm Dia |
| Material - Housing & Prism | N/A/Stainless Steel | ||
Product Info
| Type | Miniature | Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Electrical Life | 40,000 Cycles |
| Application Specifics | Telecommunications,instrumentation,medicalequipment | ||
Environmental
| Operating Temperature | -30 to 85 °C | Operating Temperature - Junction | +85°C |
