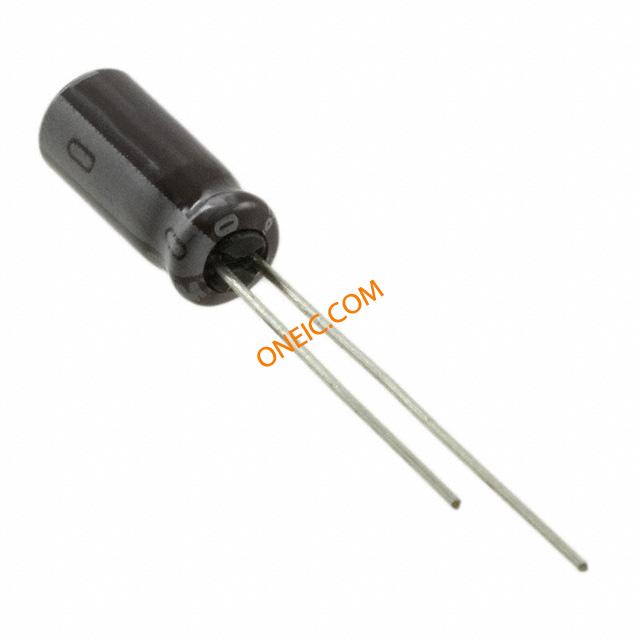

UPM1H100MDD
| Manufacturer | |
| Description | Aluminum Electrolytic Capacitors - Leaded 50volts 10uF 5x11 20% 2LS Cap Aluminum 10uF 50V 20% (5 X 11mm) Radial 2mm 57mA 2000h 105°C Bulk CAP ALUM 10UF 50V 20% RADIAL Cap Aluminum 10uF 50V 20% (5 X 11mm) Radial 2mm 57mA 2000h 105C Bulk CAPACITOR, 10UF, 50V CapacitorAluminumElectrolyticCap10uF50V20%Radial5X11LS2mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Low Impedance Electrolytic Capacitors | Product Category | Aluminum Electrolytic Capacitors - Leaded |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85322200 | Rad Hardened | No |
Electrical
| Voltage | 50VDC | Impedance | :1.40ohm |
| Tolerance | 20 % | Capacitance | 10 uF |
| Range deg/s | :NICHICON - PM Series | Voltage Rating | 50 V |
| Current - Leakage | 4@1Min | DC Cold Resistance | 4 uA |
| Capacitance - Input | :Radial Leaded | Impedance @ Frequency | :100kHz |
| Dissipation Factor (DF) | 0.1 | Ripple Current @ Low Frequency | :57mA |
| Ripple Current @ High Frequency | 115 mA | ||
Mechanical
| Size | 5 X 11 | Depth | Not Required mm |
| Height | 11 mm | Length | :11mm |
| Weight | 0.046 | Diameter | 5 mm |
| Packaging | Bulk | Termination | Radial |
| Construction | Radial | Lead Spacing | 2 mm |
| Pin Diameter | :0.5mm | Pitch - Post | 2 |
| Mounting Type | Through Hole | Terminal Type | :Wire Ended |
| Mounting Style | Through Hole | Number of Pins | :2 |
| Package / Case | 11 mm | Length - Overall | Not Required mm |
| Material - Blade | AluminumElectrolytic | Size / Dimension | 5 mm Dia. x 11 mm L |
| Termination Style | Radial | Shell Size - Insert | 5mmDia.x11mmL |
| Diameter - Small Outside | 0.5 mm | ||
Product Info
| Type | Electrolytic | Series | PM |
| Failure Rate | Not Required | Electrical Life | 2000 hr |
Environmental
| Rated Life | 2000 hr | Operating Temperature | - 55 C to + 105 C |
| Thermal Resistance @ Natural | :20°C | Operating Temperature - Junction | :2000h |
