NO2-4FDW
| Manufacturer | |
| Description | Fiber Optic Connectors OPTICALCON CHASSIS OPTALLOY Chassis connector with hard Nickel plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof according to IP65, front panel mount
The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection. Colored sealings are included to identify the fiber mode. Product Highlights:
Designed as feedthrough with automatic sealing shutter Shutter with silicone gasket protects optical connection from dust an dirt Accommodates standard LC connectors on the rear for simple installation Connection on the front side either by rugged opticalCON or standard LC connector Waterproof acc. to IP65 safety standard In case of limited space the chassis can be mounted without rubber gasket. IP rating for this is IP52. CONNECTOR, OPTICAL CON CHASSIS opticalconchassisconnector(IP65rated) |
| Category |
Business
| Product | LC Connectors | Standard Pack | 5 |
| Product Category | Fiber Optic Connectors | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85367000 | ||
Mechanical
| Weight | 0.03 | Material | :Zinc diecast (ZnAl4Cu1) |
| Body Material | Zinc Die Cast | Connector Type | Chassis Connector |
| Material - Body | :Metal | Diameter - Inside | :- |
| Fiber Core Diameter | 9 um / 50 um | ||
Product Info
| Mode | Singlemode APC / Singlemode PC / Multimode | Type | Duplex |
| Series | :opticalCON | Fiber Type | :Singlemode, Multimode |
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | - 30 C to + 80 C |
Documents & Media
Similar Parts
NO2-4FDW-R
Neutrik
Fiber Optic Connectors OPTICALCON CHASSIS RUTHENIUM Conn LC Single Mode/Multimode Duplex F Solder Cup ST Panel Mount 0.5dB CONNECTOR, OPTICAL CON CHASSIS OPTICALCONDUOCHASSISRUTHENIUM,IP65RATED
NDO
Neutrik
Standard Circular Connector DUMMYPLUG FOR OPTICALCON RECEP Connector Accessories Dummy Plug The dummyPLUG NDO for Neutrik opticalCON receptacles enables you to simplify cabling. Unused inputs can be covered to avoid miss wiring and protect against dust additionally. DUMMY PLUG FOR OPTICAL CON CHASSIS dummyPLUG-foropticalCONreceptacles-rubber- Neutrik, 型 仿真插头, 使用于OpticalCON

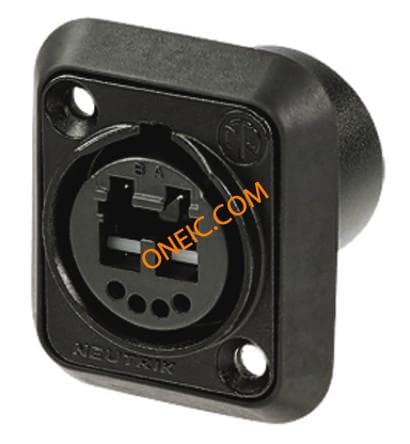

NO2-4FDW-A
