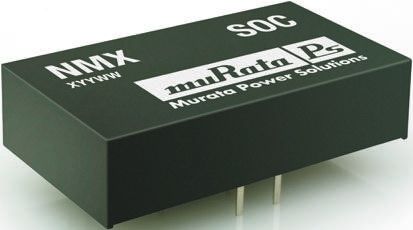

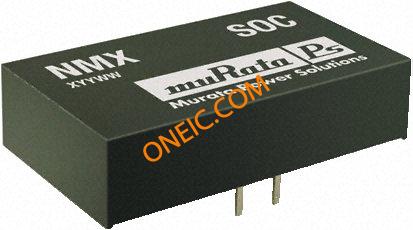

NMXD0515SOC
| Manufacturer | |
| Description | DC/DC Power Supply Dual-OUT 15V/-15V 0.2A/-0.2A 6W 5-Pin Tube Module DC-DC 2-OUT 15V/-15V 0.2A/-0.2A 6W 5-Pin Tube CONV DC/DC 5W 5VIN 15V DIP REG NMXD0515SOC regulated DC-DC,+/-15V 5W DC/DC Converters 5Vin +/-15Vout +/-0.2A 5W DIP Reg CONVERTER, DC/DC, 5W, +/-15V Murata Power Solutions NMXSO 系列 隔离式直流-直流转换器 , ±15V dc输出, ±0.2A输出 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 12 | Product | Isolated |
| Unit Pack | 12 | Other Names | 811-1614-5 |
| Product Category | DC/DC Converters | Standard Package | Bulk |
| Factory Pack Quantity | 12 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85044030 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Isolation | Isolated | Efficiency | 65% |
| Power - Max | 5W | Output Power | 6 W |
| Power - Rated | 6W | Converter Type | :Isolated POL |
| Voltage Rating | 15|-15 V | Line Regulation | :0.5% |
| Load Regulation | :0.5% | Voltage - Input | 5 V |
| Current - Output | 0.2|-0.2 A | Voltage - Supply | :5V |
| Number of Outputs | 2 | Current - Output 2 | :200mA |
| Power (Watts) - Max | 5W | Voltage - Isolation | 1kV (1000V) |
| Output Ripple Voltage | :60mV | Voltage - Input (Max) | :10% |
| Voltage - Input (Min) | 15V | Power - Average Forward | :0.53W/cm³ |
| DC Voltage - Input (Max) | :5.5V | Current - Output / Channel | +/- 0.2 A |
Mechanical
| Depth | 10mm | Width | 23.5mm |
| Height | 10 mm | Length | 40.5mm |
| Weight | 0.02 | Packaging | Tube |
| Lead Style | Through Hole | Pin Diameter | :1.02mm |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | 5-DIP Module | Length - Overall | 40.5 |
| Size / Dimension | 1.59" L x 0.93" W x 0.39" H (40.4mm x 23.6mm x 9.9mm) | Number of Positions | 5 |
| Shell Size - Insert | 10 | ||
Product Info
| Type | Non-Inverting|Step Up|Step Down | Series | NMXS0 |
| Printed Circuit Board | 5 | ||
Environmental
| Operating Temperature | 0°C ~ 70°C | Maximum Temperature Limit | +70°C |
