NMH0515SC
| Manufacturer | |
| Description | Module DC-DC 2-OUT 15V/-15V 0.067A/-0.067A 2W 5-Pin SIP Tube CONV DC/DC 2W 5VIN 15VOUT SIP DL NMH0515SC unregulated DC-DC,+/-15V 2W DC/DC Converters 2W DUAL OUT 5-15V Dual Output CONVERTER, DC/DC, SIL, 2W, +/-15V DC/DC converter 5 VDC 15 VDC, NMH0515SC, Murata Power Solutions Murata Power Solutions NMH 系列 隔离式直流-直流转换器 , ±15V dc输出, ±0.067A输出 ±10%负载调节 ±1.2%线路调节 DC/DC-CONV. 5V TO +-15V 2W 1kV |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolated | Other Names | 811-1511-5 |
| Product Category | DC/DC Converters | Standard Package | Bulk |
| Factory Pack Quantity | 25 | Standard Package Name | SIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | Material Flammability Rating | :UL94V-0 |
Electrical
| Isolation | Isolated | Efficiency | 84% |
| Power - Max | 2W | Output Power | 2 W |
| Power - Rated | 2W | Converter Type | :Isolated POL |
| Voltage Rating | 15|-15 V | Line Regulation | ±1.2% |
| Load Regulation | ±10% | Voltage - Input | 5 V |
| Current - Output | 0.067|-0.067 A | Voltage - Supply | :5V |
| Number of Outputs | 2 | Current - Output 2 | :67mA |
| Power (Watts) - Max | 2W | Switching Regulator | Yes |
| Voltage - Isolation | 1kV (1000V) | Output Ripple Voltage | :150mV |
| Voltage - Input (Max) | :10% | Voltage - Input (Min) | 15V |
| Power - Average Forward | :1.42W/cm³ | DC Voltage - Input (Max) | :5.5V |
| Current - Output / Channel | 67 mA | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Depth | 10mm | Width | 7.5mm |
| Height | 10 mm | Length | 19.5mm |
| Weight | 0.00276 | Packaging | Tube |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | 5SIP |
| Length - Overall | 19.5 mm | Package Quantity | SIP |
| Size / Dimension | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | Number of Positions | 5 |
| Shell Size - Insert | 10 | ||
Product Info
| Type | Non-Inverting|Inverting|Step Up|Step Down | Series | NMH |
| DELETED | Compliant | Printed Circuit Board | 5 |
Environmental
| Operating Temperature | -40°C ~ 85°C | Maximum Temperature Limit | +85°C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
IH0515S
XP POWER
CONVERTER, DC/DC, 2W, +/-15V DC/DC CONVERTER +/-15V 2W XP Power IH 系列 2W 隔离式直流-直流转换器 , 15V dc输出, ±66mA输出 ±10%负载调节 Maximum of 1.2%线路调节
$54.7547
Details

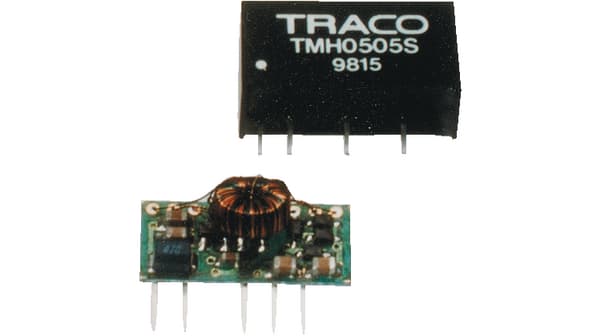

TMH 0515D
