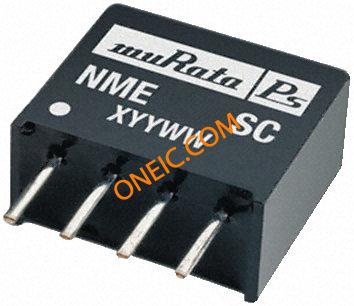

NME0524SC
| Manufacturer | |
| Description | Module DC-DC 1-OUT 24V 0.042A 1W 4-Pin SIP Tube DC/DC CONVERTER 5V TO 24V CONV DC/DC 1W 5VIN 24V SIP SGL DC/DC converter,5Vin,24Vout 42mA 1W DC/DC Converters 5V to 24V 42mA Single Output CONVERTER, DC/DC, SIL, 1W, 24V Murata Power Solutions NME 系列 隔离式直流-直流转换器 , 24V dc输出, 42mA输出 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 35 | Product | Isolated |
| Unit Pack | 35 | Other Names | 811-1481-5 |
| Product Category | DC/DC Converters | Standard Package | Bulk |
| Factory Pack Quantity | 35 | Standard Package Name | SIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Leadfree Defin | RoHS-conform | Protection Features | No |
Electrical
| Noise | 85mV(pp) | Isolation | Isolated |
| Efficiency | 69% | Output Type | Single |
| Power - Max | 1W | Output Power | 1 W |
| Power - Rated | 1W | Converter Type | :Isolated POL |
| Voltage Rating | 24 V | Line Regulation | 1.0% |
| Load Regulation | 14% | Voltage - Input | 5 V |
| Current - Output | 0.042 A | Voltage - Supply | :5V |
| Number of Outputs | 1 | Power (Watts) - Max | 1W |
| Voltage - Isolation | 1kV (1000V) | Output Ripple Voltage | :180mV |
| Voltage - Input (Min) | 24V | Power - Average Forward | :1.45W/cm³ |
| DC Voltage - Input (Max) | :5.5V | Current - Output / Channel | 42 mA |
Mechanical
| Depth | 10mm | Width | 6mm |
| Height | :7.46mm | Length | 11.48mm |
| Weight | 0.001 | Packaging | Tube |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | 4SIP |
| Length - Overall | 11.48 | Package Quantity | SIP |
| Size / Dimension | 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm) | Number of Positions | 4 |
| Shell Size - Insert | 10 | ||
Product Info
| Type | Step Up | Series | NME |
| Matchcode | NME0524SC | Standard Leadtime | 14 weeks |
| Printed Circuit Board | 4 | ||
Environmental
| Operating Temperature | -40/85°C | Maximum Temperature Limit | +85°C |
