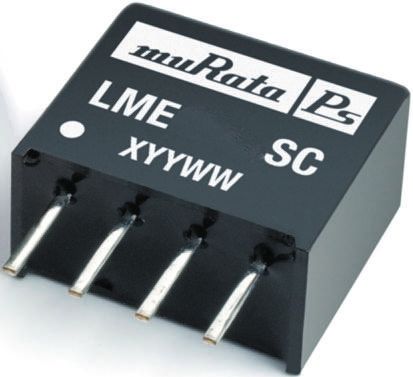

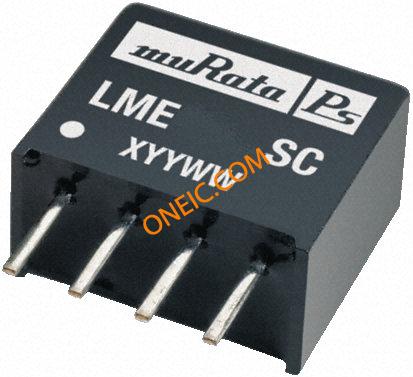

LME0515SC
| Manufacturer | |
| Description | DC/DC Power Supply Single-OUT 15V 0.016A 0.25W 4-Pin SIP CONV DC/DC .25W 5VIN 15VOUT SIP LME0515SC isolated DC-DC,15V 0.25W DC/DC Converters 5-15V SIP 4 1/4W Single Output CONVERTER, DC/DC, SIL, 250MW, 15V Murata Power Solutions LME 系列 隔离式直流-直流转换器 , 15V dc输出, 16mA输出 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 35 | Product | Isolated |
| Unit Pack | 35 | Other Names | 811-1349-5 |
| Product Category | DC/DC Converters | Standard Package | Bulk |
| Factory Pack Quantity | 35 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85044030 | Material Flammability Rating | :UL94V-0 |
Electrical
| Efficiency | 75% | Power - Max | 1W |
| Output Power | 0.25 W | Power - Rated | 0.25W |
| Converter Type | :Isolated POL | Voltage Rating | 15 V |
| Load Regulation | :10% | Voltage - Input | 5 V |
| Current - Output | 0.016 A | Voltage - Supply | :5V |
| Number of Outputs | 1 | Power (Watts) - Max | 0.25W |
| Voltage - Isolation | 1kV (1000V) | Output Ripple Voltage | :50mV |
| Voltage - Input (Max) | :10% | Voltage - Input (Min) | 15V |
| Power - Average Forward | :0.36W/cm³ | DC Voltage - Input (Max) | :5.5V |
| Current - Output / Channel | 0.016 A | ||
Mechanical
| Depth | 10mm | Width | 6mm |
| Height | :10mm | Length | 11.48mm |
| Weight | 0.00148 | Packaging | Tube |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Package / Case | 4SIP | Size / Dimension | 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm) |
Product Info
| Type | Step Up | Series | LME |
Environmental
| Operating Temperature | 0°C ~ 70°C | Maximum Temperature Limit | +70°C |
