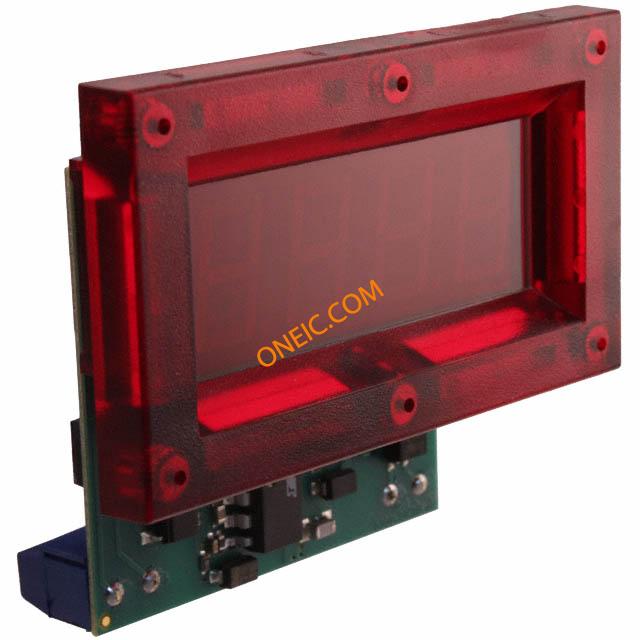

DMU-30ACV-2-DR-C
| Manufacturer | |
| Description | 300VAC- VOLTMETER LED 300VAC 85-264V RED Digital Panel Meters 0-300Vac Input Rng 3 1/2 High Red LED 3.5 Digit LED Display |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 84 Days | Subcategory | Misc Products |
| Product Category | Digital Panel Meters | Standard Package | 12 |
Compliance
| RoHS | Lead free / RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Accuracy | ±0.4% + 2 digits | Display Type | LED |
| Voltage Rating | 300 VAC | Current - Supply | 40 mA |
| Voltage - Supply | 85 ~ 264VAC | ||
Mechanical
| Width | 72.4 mm | Packaging | Case |
| Termination | Screw Terminals | Mounting Type | Panel Mount, Screw In |
| Mounting Style | Panel | Package / Case | 44.7 mm |
| Size / Dimension | 44.7 mm L x 72.4 mm W x 40.64 mm H | Panel Cutout Dimensions | Rectangular - 53.80mm x 22.30mm |
| Display Characters - Height | 0.559" (14.20mm) | ||
Product Info
| Type | Voltage (Voltmeter) | Series | DMU-30ACV |
| Features | NEMA 4X/IP65 Sealing Gasket | Function | TRMS, daylight readable, auto dimming |
| Face Size | 2.85" W x 1.60" H (72.4mm x 40.6mm) | Calibration | Not required |
| Display Style | Red Characters, Black Background | Display Digits | 3.5 |
| Equipment Type | AC Voltmeters | Measuring Range | 0 ~ 300VAC |
Environmental
| Operating Temperature | -25°C ~ 60°C | ||
