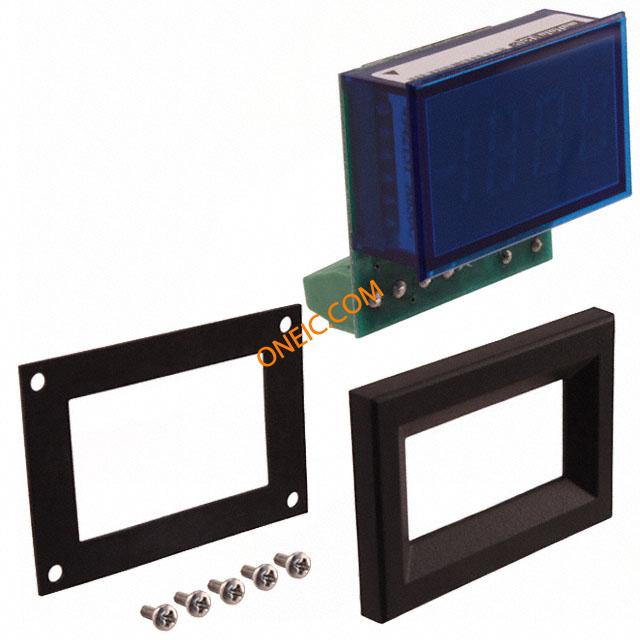

DMS-20PC-0/5-5BS-C
| Manufacturer | |
| Description | 0-5V BLU LED 5V-POWER 3.5 DIG MONITOR CTRL LED 0-5V 3.5DIG BLU Digital Panel Meters 0-5V 3 1/2 Digit LED Bright Blue |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 12 | Lead Time | 84 Days |
| Unit Pack | 12 | Subcategory | Misc Products |
| Part # Aliases | DMS-20PC-0/5-5BS-C | Product Category | Digital Panel Meters |
| Standard Package | 12 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Accuracy | ±0.05% + 1 digit | Display Type | LED |
| Voltage Rating | 0 V to 10 V | Current - Supply | 120 mA |
| Voltage - Supply | 5V | ||
Mechanical
| Width | 35 mm | Weight | 0.037 lb (16.78g) |
| Packaging | Case | Termination | Screw Terminals |
| Mounting Type | Bezel Mount, Screw In | Mounting Style | Panel, Board |
| Package / Case | 24 mm | Size / Dimension | 24 mm L x 35 mm W x 22 mm H |
| Termination Style | Screw Terminal | Panel Cutout Dimensions | Rectangular - 33.93mm x 21.29mm |
| Display Characters - Height | 0.370" (9.40mm) | ||
Product Info
| Type | Process Meter | Series | DMS-20PC-0/5 |
| Features | Dipswitch Selection, Sealing Gasket | Function | Four connections, two for signal and two for power |
| Face Size | 1.83" W x 1.28" H (46.4mm x 32.5mm) | Calibration | Self Calibrating |
| Display Style | Blue Characters, Black Background | Display Digits | 3.5 |
| Equipment Type | Meters - Process Control | Measuring Range | 0 ~ 5V |
| Number of Characters Per Row | 3.5 | For Use With/Related Products | DMS-20PC-0/5-5BS |
Environmental
| Operating Temperature | 0°C ~ 60°C | ||
Documents & Media
Archive
PDF Document
PDF Document
PDF Document
