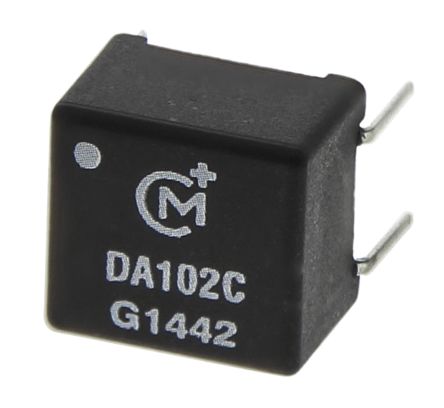

DA102C
| Manufacturer | |
| Description | Audio Transformer 1:1 2000Vrms Through Hole DIGITAL AUDIO TX 1:1 3MH DIP Through Hole Audio Transformer Transformers Audio & Signal 2.0-3.0mH 1:1 turns TRANSFORMER, DADT, 1:1 TRANSFODADT2.00-3.00MH 1:1 Digital audio transformer 2-3.00mH |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Isolation Transformers | Lead Time | 84 Days |
| Other Names | 811-2662 | Subcategory | Audio Transformer |
| Product Category | Transformers Audio & Signal | Standard Package | Bulk |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85359000 | Material Flammability Rating | :UL94V-0 |
Electrical
| Insertion Loss | 40.4dB Typ. | Frequency - Max | 3MHz |
| Frequency Range | 50 Hz to 60 Hz | Voltage - Isolation | 2 kV |
| Frequency - Operating | 0.1MHz | Turns Ratio - Primary:Secondary | 1:1 |
Mechanical
| Depth | 10.16mm | Pitch | :10.16mm |
| Width | 6.35mm | Height | 6.35 mm |
| Length | 9mm | Weight | 0.001 |
| Packaging | Tube | Lead Style | PC Pin |
| Lead Spacing | :5.08mm | Length - Pin | :3.44mm |
| Mounting Type | Through Hole | Size / Dimension | 9.52mm L x 9.00mm W |
| Transformer Type | Digital Audio Data Transmission Transformer | Termination Style | PC Pin |
| Height - Seated (Max) | 6.35mm | ||
Product Info
| Type | Transformers | Series | :DA100 |
| Product Type | Audio Transformers | RF Family/Standard | DA100 |
| For Use With/Related Products | DA102 | ||
Environmental
| Operating Temperature | 0 to 70 °C | Maximum Temperature Limit | +70°C |
