D1U-W-1200-48-HC2C
| Manufacturer | |
| Description | AC/DC Power Supply Single-OUT 48V 24.6A 1.2KW POWER SUPPLY 1200W AC/DC 48V Rack Mount Power Supplies AC/DC 1200W 48V Main 3.3V Standby |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Product | Front End Supplies |
| Unit Pack | 1 | Other Names | 811-1953 |
| Product Category | Rack Mount Power Supplies | Standard Package | Bulk |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | c-CSA-us, CSA, EN, TUV, UL | ||
Electrical
| Frequency | 47 to 63 Hz | Efficiency | 90.6(Typ) % |
| Power - Max | 1200 W | Output Power | 1.2 kW |
| Power (Watts) | 1200W | Voltage Rating | 90 to 264 V |
| Current - Output | 24.6 A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 1200W |
| Voltage - Isolation | 3000VAC | Current Rating (Max) | 15(rms) A |
| Voltage - Input (Min) | 48V | Current - Output / Channel | 24.6 A |
Mechanical
| Width | 4.75 in | Height | 1.6 in |
| Length | 12 in | Packaging | Case |
| Mounting Type | Rack | Mounting Style | Rack |
| Length - Overall | 312.64 | Size / Dimension | 12.00" L x 4.75" W x 1.60" H (304.8mm x 120.7mm x 41.0mm) |
| Shell Size - Insert | 132.85 | ||
Product Info
| Type | Regulated | Style | Enclosed |
| Application | Commercial | Applications | Commercial |
Environmental
| Operating Temperature | 0 to 50 °C | ||
Documents & Media
Similar Parts

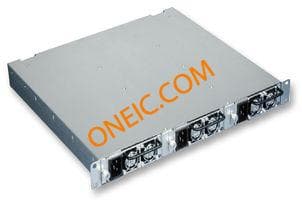

S1U-3X-16-A-48-RC
