78253/35MC

Manufacturer	Murata Manufacturing Co., Ltd.
Description	Pulse Transformer 1:2.27 1500VDC 1Ohm Prim. DCR 50pF 35Vus Surface Mount Pulse Transformer 1:2.27 1500VDC 1Ohm Prim. DCR 50pF 6Term. Gull Wing SMD XFRMR 3.3V IN 5V OUT MAX 253 SMD 1:2.27 Surface Mount Telecom Transformer Power Transformers 3.3Vin 5vout 100mA 1500Vdc 1:2.27 turn TRANSFO,CONVERT,1:2.27 1:2.27 表面贴装电信变压器, 0.38mH, 1Ω 78253 TRANSF 1:2,27 SMD 1,5kV
Category	Inductor ComponentsTransformersPulse Transformers

对参数有疑问？问 AI 助手

Business

Product	Toroidal Power Transformers	Lead Time	84 Days
Subcategory	Pulse Transformer	Product Category	Power Transformers
Standard Package	Bulk	Factory Pack Quantity	50

RoHS	Contains lead / RoHS Compliant	EU RoHS	Compliant
Automotive	NO	Leadfree Defin	RoHS-conform

Inductance	380 uH	Voltage - Primary	3.3 V
Capacitance - Input	50 pF	Voltage - Breakdown	1500VDC
Secondary Winding(s)	Single Secondary Winding	DC Resistance (DCR) (Max)	1Ω
Capacitance Ratio Condition	50	DC Resistance (DCR) - Primary	1 Ohm
Turns Ratio - Primary:Secondary	1:2.27	Voltage - Secondary (Full Load)	5 V
Inductance - Connected In Series	1 uH	Input Capacitance (Ciss) (Max) @ Vds	50 pF

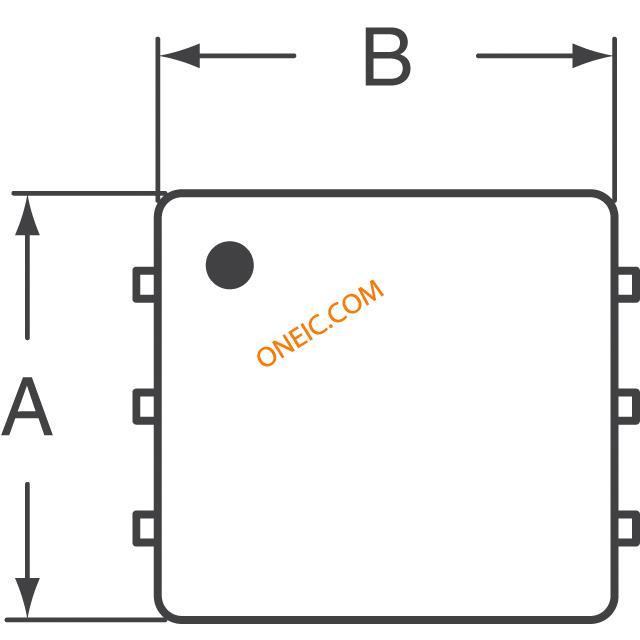

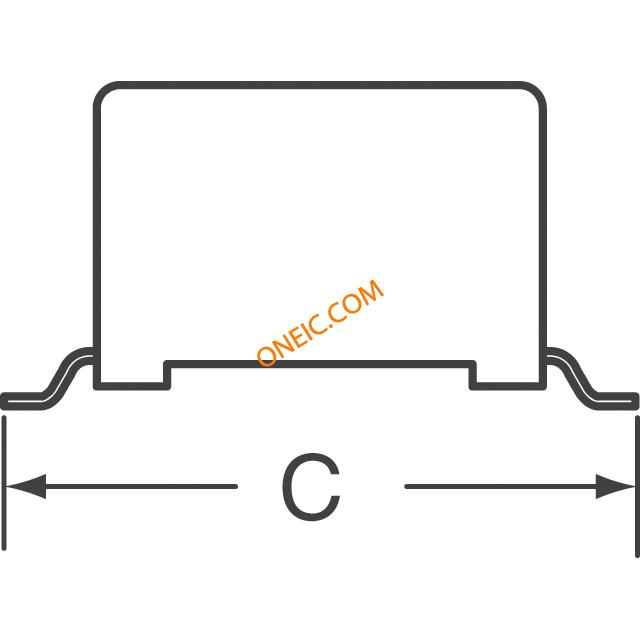

Size	9.52mm L x 9.00mm W	Depth	12.7 mm
Width	8.89 mm	Height	6.35 mm
Length	12.7 mm	Packaging	Tube
Lead Style	Gull Wing	Mounting Type	Surface Mount
Mounting Style	SMD/SMT	Length - Overall	9 mm
Size / Dimension	9.52mm L x 9.00mm W	Transformer Type	Compatible Converter Transformer
Termination Style	Solder Pad	Number of Contacts	6
Primary Winding(s)	Single Primary Winding	Number of Positions	6
Height - Seated (Max)	6.50mm	Maximum Working Height	6.50mm

Note	94V-0	Type	Compatible Converter Transformers
Series	78253	DELETED	Compliant
Topology	MAX253	Output Configuration	Surface Mount
For Use With/Related Products	78253/35M

Operating Temperature

- 40 C to + 85 C

Maximum Temperature Limit

+85°C
