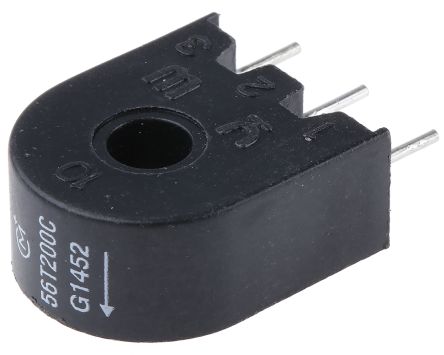

56T200C
| Manufacturer | |
| Description | Current Transformer 1:200CT 500VDC 1.87Ohm/2.81Ohm Prim. DCR 10000mA Through Hole Murata 10A Through Hole Current Transformer, 1:200 Current Transformer Sensors 80-150mH at 1V 10kHz 10A 200ct turns Murata Power Solutions 10A 通孔 电流互感器 CT, 1:200匝数比 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 25 | Lead Time | 84 Days |
| Unit Pack | 25 | Subcategory | Current Transformer |
| Product Category | Current Transformer Sensors | Standard Package | Bulk |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 20 to 200 KHz | Inductance | 80000/150000 uH |
| Frequency - Max | 200kHz | Frequency - Min | 20kHz |
| Current - Output | 10000 mA | Voltage - Primary | 5 V |
| Voltage - Isolation | 500V dc | Current Rating (Max) | 10A |
| Frequency - Operating | 20kHz | Current - Input Bias (Max) | 10A |
| DC Resistance (DCR) - Primary | 1.87/2.81 Ohm | Turns Ratio - Primary:Secondary | 1:200CT |
Mechanical
| Depth | 20.19mm | Width | 8.89mm |
| Height | 20.19 mm | Length | 16.79mm |
| Packaging | Tube | Lead Style | PC Pin |
| Mounting Type | Through Hole | Inner Diameter | 5mm |
| Mounting Style | Through Hole | Size / Dimension | 16.79 x 8.89 x 20.19mm |
Product Info
| Function | Y | For Use With/Related Products | 56T200 |
Environmental
| Operating Temperature | -40°C | Maximum Temperature Limit | +85°C |
