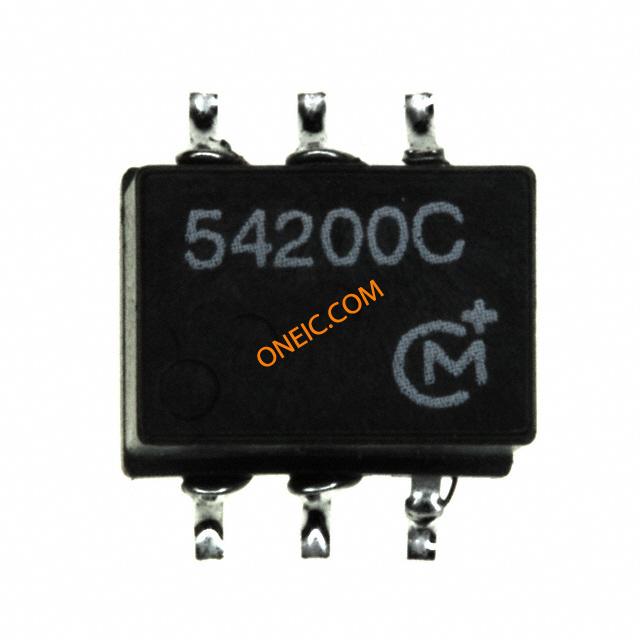

54200C
| Manufacturer | |
| Description | Current Transformer 1:1:200 1200Vrms 0.007Ohm Prim. DCR 6.6Ohm Sec. DCR 15000mA Surface Mount XFRMR CURR SENSE 15A 1:1:200 SMD Murata 15A Surface Mount Current Transformer, 1:1:200 Current Transformer Sensors 60.0mH 1:1:200 turns SM Curr Sense Txfr 54200C CURRSENSTRANSF1:1:200 Murata Power Solutions 15A 表面贴装 变流器, 1:1:200匝数比 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 450 | Lead Time | 84 Days |
| Unit Pack | 450 | Subcategory | Current Transformer |
| Product Category | Current Transformer Sensors | Standard Package | Tape & Reel |
| Factory Pack Quantity | 450 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Frequency | 50 to 500 KHz | Frequency - Max | 500kHz |
| Frequency - Min | 50kHz | Current - Output | 15000 mA |
| Voltage - Isolation | 1.2kV ac | Current Rating (Max) | 15A |
| Frequency - Operating | 50kHz | DC Resistance (DCR) (Max) | 7mΩ |
| Current - Input Bias (Max) | 15A | Impedance - Primary (Ohms) | 7mΩ |
| DC Resistance (DCR) - Primary | 0.007 Ohm | DC Resistance (DCR) - Secondary | 6.6 Ohm |
| Turns Ratio - Primary:Secondary | 1:1:200 | ||
Mechanical
| Depth | 8.2mm | Width | 9mm |
| Height | 8.2 mm | Length | 10.8mm |
| Packaging | Tape and Reel | Lead Style | Gull Wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Size / Dimension | 10.8 x 9 x 8.2mm | Termination Style | SMD/SMT |
Product Info
| Function | Y | ||
Environmental
| Operating Temperature | -40°C | Maximum Temperature Limit | +125°C |
