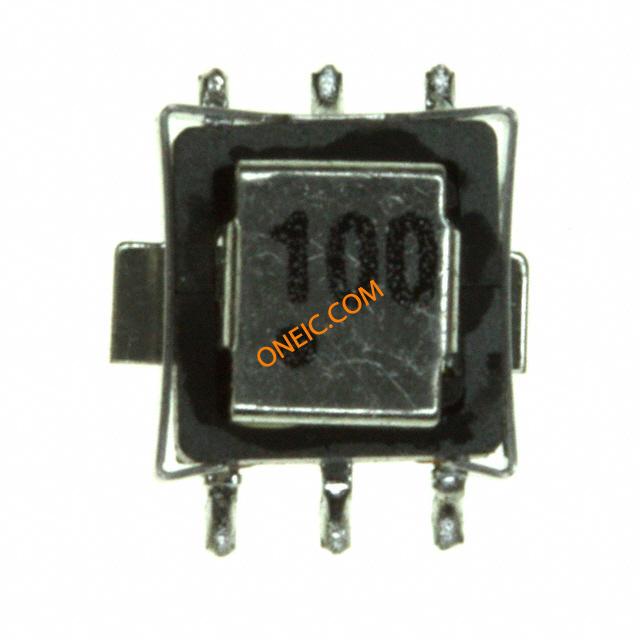

53100C
| Manufacturer | |
| Description | Current Transformer 1:100 500Vrms 0.007Ohm Prim. DCR 5.6Ohm Sec. DCR 10000mA Surface Mount XFRMR CURR SENSE 10A 1:100 SMD Murata 10A Surface Mount Current Transformer, 1:100 Current Transformer Sensors 2.00mH 1:100 turns SM Curr Sense Txfr Murata Power Solutions 10A 表面贴装 电流互感器 CT, 1:100匝数比 5300 THT 1:100 50-500kHz |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1000 | Lead Time | 84 Days |
| Unit Pack | 1000 | Subcategory | Current Transformer |
| Product Category | Current Transformer Sensors | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Frequency | 50 to 500 KHz | Inductance | 2000 µH |
| Frequency - Max | 500kHz | Frequency - Min | 50kHz |
| Frequency Range | 500000 Hz | Current - Output | 10000 mA |
| Connector Impedance | 7mΩ | Voltage - Isolation | 500V ac |
| Current Rating (Max) | 10A | Frequency - Operating | 50kHz |
| DC Resistance (DCR) (Max) | 7mΩ | Current - Input Bias (Max) | 10A |
| Impedance - Primary (Ohms) | 7mΩ | DC Resistance (DCR) - Primary | 0.007 Ohm |
| DC Resistance (DCR) - Secondary | 5.6 Ohm | Turns Ratio - Primary:Secondary | 1:100 |
Mechanical
| Depth | 5.4mm | Pitch | 1.85 mm |
| Width | 7.2mm | Height | 5.4 mm |
| Length | 8.3mm | Packaging | Tape and Reel |
| Lead Style | Gull Wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Size / Dimension | 8.3 x 7.2 x 5.4mm |
| Termination Style | SMD/SMT | ||
Product Info
| Function | Y | Technology | SWITCH |
Environmental
| Temperature - Test | -40 °C | Operating Temperature | -40°C |
| Maximum Temperature Limit | +125°C | ||
