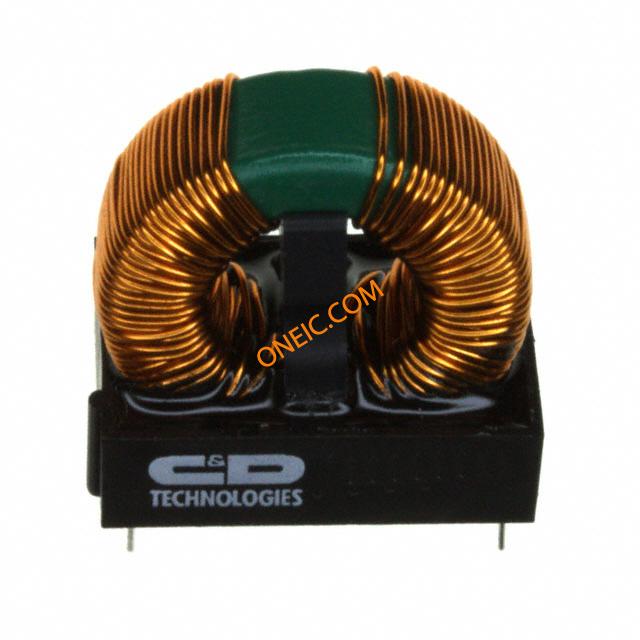

52106C
| Manufacturer | |
| Description | Ind Common Mode Choke Toroid 10mH 1.7A Pin Tray CHOKE COMMON MODE 10MH 1.7A T/H Murata 10mH Leaded Inductor, 1.7A Idc, 193mΩ Rdc Common Mode Filters / Chokes 10mH 1.7A Common Mode Chokes COMMODECHOKES,10.00MH Murata 5200 系列 10 mH 引线型电感器, 1.7A Idc, 193mΩ Rdc |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 40 | Product | Inductors |
| Lead Time | 84 Days | Unit Pack | 40 |
| Other Names | 811-1257 | Subcategory | Common Mode Chokes |
| Product Category | Common Mode Filters / Chokes | Standard Package | Trays |
| Factory Pack Quantity | 16 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current | 1.7A | Inductance | 10 mH |
| Filter Type | Power Line | Inductance Range | 10000 μH |
| DC Resistance (DCR) | 193 mOhm Max | Current Rating (Max) | 1.7 A |
| Resistance - 25degC (Typ) | 193mΩ | Resistance - Initial (Ri) (Min) | 193 mOhm |
Mechanical
| Depth | 16.3 mm | Width | 16.3 mm |
| Height | 41 mm | Length | 26.25mm |
| Packaging | Tray | Shielding | Unshielded |
| Lead Style | Pin | Height (Max) | 1.220" (31.00mm) |
| Lead Spacing | 20.32 mm | Pitch - Post | 20.32mm |
| Mounting Type | Through Hole | Package / Case | Vertical, 4 PC Pin |
| Length - Overall | 26.25 mm | Size / Dimension | 0.945" L x 0.642" W (24.00mm x 16.30mm) |
| Pitch - Connector | 20.32mm | Termination Style | Radial |
Product Info
| Type | Common Mode Choke | Series | 5200 |
| Function | Y | Number of Lines | 2 |
Environmental
| Operating Temperature | -40 to 125 °C | ||
