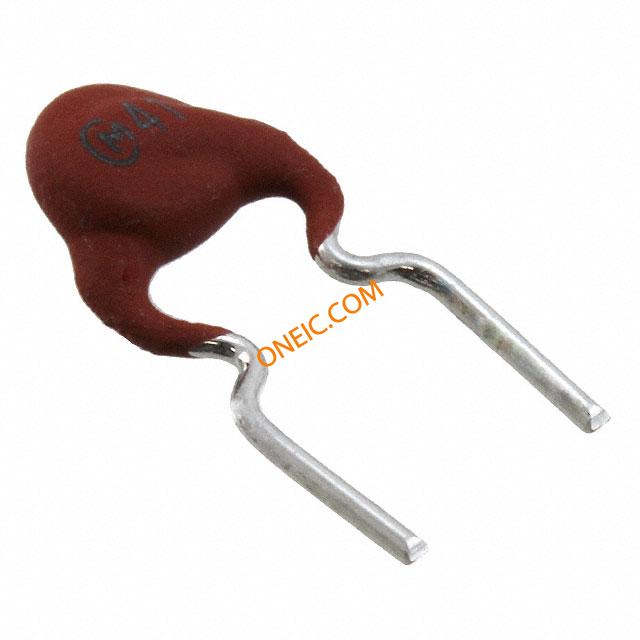

PTGL04AR130H2B51B0
| Manufacturer | |
| Description | Thermistor PTC 13Ohm 25% 2-Pin Bulk Thermistors - PTC 13ohm +/-25% PTC Thermistor Thermistor PTC 13 Ohm 25% 2-Pin Radial Bulk THERMISTOR PTC 30V 13 OHM 120C PTC for Circuit Protection 4mm dia. Murata 1200mW 13Ω ±25% PTC 热敏电阻器 PTC Thermistors 13ohm +/-25% PTC Thermistor PTCR 5,5mm 13R 25% 30V |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 70 Days | Subcategory | Thermistor |
| Product Category | Thermistors - PTC | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Voltage | 30 V | Tolerance | 25 % |
| Resistance | 13 Ohms | Power - Max | 1200mW |
| Power - Rated | 1.2W | Voltage - Max | 30V |
| Current - Trip (It) | 350mA | Resistance @ 25degC | 13 Ω |
| Voltage - Breakover | 30 V | Current Rating (Max) | 0.7 A |
| Resistance Tolerance | 7 to 50 Ohm | Resistor - Base (R1) | 13 Ω |
| Connector - Voltage Input | 0.6mm dia. x 4mm Inside Crimp Standoff | Current - Hold (Ih) (Max) | 180mA |
Mechanical
| Depth | 4mm | Pitch | 5 mm |
| Length | 5.5 Dia.mm | Weight | 0.013051 oz |
| Diameter | 5.5 mm | Packaging | Bulk |
| Height (Max) | 11.5(Max) | Mounting Type | Through Hole |
| Package / Case | 2 | Size / Dimension | 5.5 Dia. x 4mm |
| Termination Style | Radial | Number of Contacts | 2 |
Product Info
| Type | PTC | Series | PTG |
| Applications | 汽车、AV 设备、通信设备、家用电器、信息设备、电源 | Manufacturer | Murata Electronics |
| Industry Aliases | PTH8L04AR130H2B550 | ||
Environmental
| Operating Temperature | -10 to 60 °C | Temperature Coefficient | PTC |
Documents & Media
PDF Document
