PRG21BC2R2MM1RA
| Manufacturer | |
| Description | PTC Resettable Fuse 6.5A 12V Thermistors - PTC 2.2 Ohm 20% 16volts PTC Resettable Fuse 22.5A(hold) 0.5A(trip) 12V 6.5A SMD Solder Pad PRG21BC2R2MM1RA THERMISTOR PTC SMD Overcurrent Protection 2x1.25mm Murata 2.2Ω ±20% PTC 热敏电阻器, 0805 封装 PTC Thermistors 2.2 Ohm 20% 16volts |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 4000 | Lead Time | 84 Days |
| Unit Pack | 4000 | Other Names | 490-8512-1 |
| Subcategory | PTC Resettable Fuse | Standard Package | Tape & Reel |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage | 16 V | Tolerance | 20 % |
| Resistance | 2.2 Ohms | Voltage - Max | 16V |
| Current - Trip (It) | 0.5 A | Resistance @ 25degC | 2.2 Ω |
| Current Rating (Max) | 6.5 A | Voltage - Input (Min) | 12 V |
| Current - Hold (Ih) (Max) | 22.5 A | ||
Mechanical

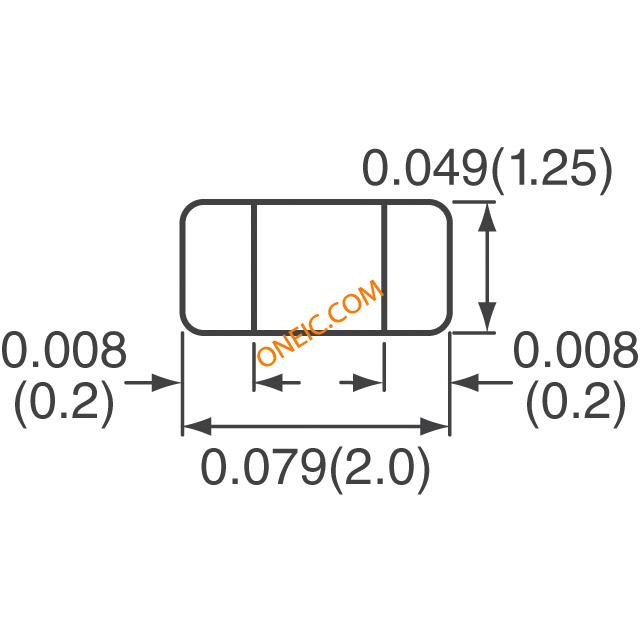

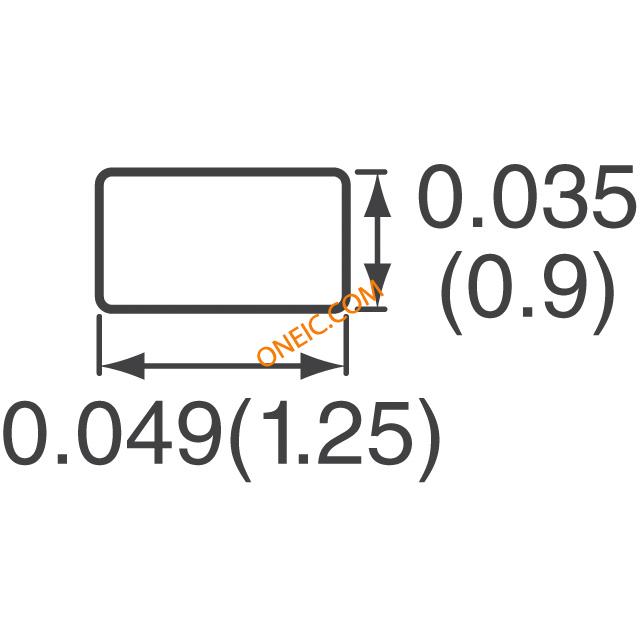

| Depth | 1.25mm | Width | 1.25 mm |
| Height | 0.9mm | Length | 2mm |
| Packaging | Ammo | Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) | Size / Dimension | 1.25 mm W x 2 mm L x 0.9 mm H |
| Termination Style | SMD/SMT | Number of Contacts | 2 |
Product Info
| Type | PTC | Series | PRG |
| Applications | 汽车、AV 设备、通信设备、家用电器、信息设备、电源 | Manufacturer | Murata Electronics |
Environmental
| Operating Temperature | - 10 C to + 60 C | Temperature Coefficient | PTC |
