PRG21BB150MB1RK
| Manufacturer | |
| Description | Thermistor PTC 15Ohm 20% 2-Pin 0805 Embossed T/R Thermistors - PTC 15 OHM 20V Thermistor PTC 15 Ohm 20% 2-Pin 0805 Surface Mount Solder Pad Embossed T/R THERMISTOR PTC 15 OHM SMD PTC SMD Overcurrent Protection 2x1.25mm THERMISTOR, PTC, 15R Murata 15Ω ±20% PTC 热敏电阻器, 0805 封装 PTC Thermistors 15 OHM 20V |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 84 Days | Other Names | 490-3990-2 |
| Subcategory | Thermistor | Product Category | Thermistors - PTC |
| Standard Package | Tape & Reel | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85363010 |
Electrical
| Voltage | 20 V | Tolerance | 20 % |
| Resistance | 15 Ohms | Voltage - Max | 20V |
| NTC Thermistor | :PTC | Voltage Rating | :20V |
| Current - Trip (It) | 140mA | Resistance @ 25degC | 15 |
| Current Rating (Max) | 140 mA | Resistance Tolerance | 7 to 50 Ohm |
| Voltage - Supply (Min) | :20V | Connector - Voltage Input | Leadless |
| Current - Hold (Ih) (Max) | 40mA | ||
Mechanical

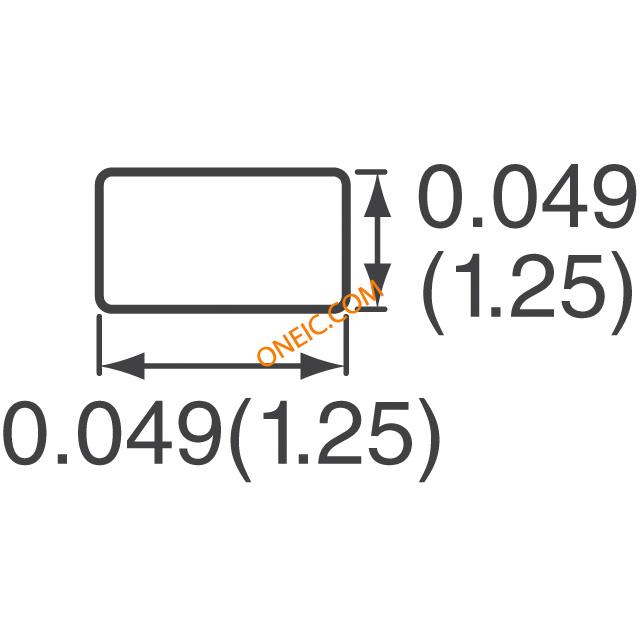

| Depth | 1.25mm | Width | :1.25mm |
| Height | 1.25mm | Length | 2mm |
| Weight | 0.017 | Packaging | Reel |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | 20805 | Length - Overall | 2 |
| Size / Dimension | 0.9 mm W x 2 mm L x 1.25 mm H | Termination Style | SMD/SMT |
| Number of Contacts | 2 | ||
Product Info
| Type | PTC | Series | PRG |
Environmental
| Temperature | :100°C | Operating Temperature | -10 to 60 °C |
| Temperature Coefficient | PTC | ||
