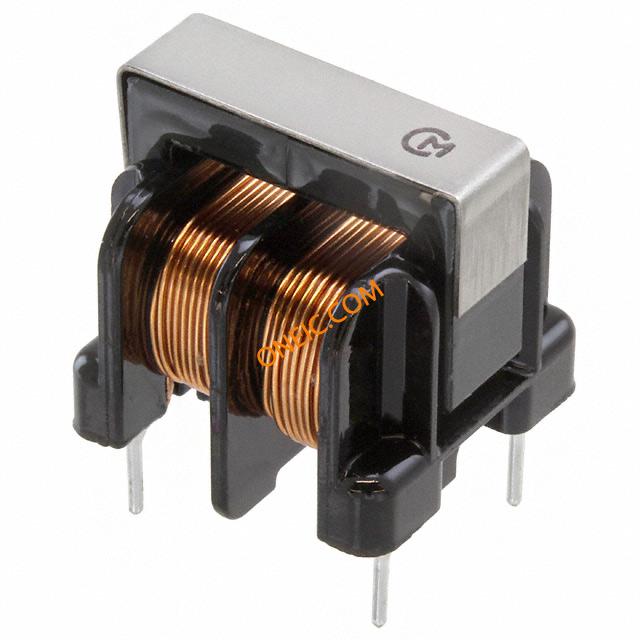

PLA10AS5521R0R2B
| Manufacturer | |
| Description | Ind Common Mode Choke 5.5mH 1A Pin Box Common Mode Filters / Chokes 5.5mH 1A 250volt Common Mode Chokes Dual 5.5mH 1A Thru-Hole Box PLA10A5521R0R12M86-029 COMMON MODE CHOKE 5.5MH 1A T/H PLA10AS 2X5,5mH 250VAC 1000mA |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1260 | Product | Chokes |
| Lead Time | 119 Days | Unit Pack | 1260 |
| Subcategory | Common Mode Chokes | Standard Package | Bulk |
| Factory Pack Quantity | 1260 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Current | 1A | Inductance | 5.5 mH |
| Filter Type | Power Line | Voltage Rating | 250V |
| Current - Output | 1000 mA | Voltage - Breakdown | 2.4kV |
| Current Rating (Max) | 1 A | Insulation Resistance | 100M |
| Resistance - Initial (Ri) (Min) | 100 mOhms | ||
Mechanical
| Depth | 16 mm | Width | 16 mm |
| Height | 17.5 mm | Length | 18 mm |
| Weight | 7.46 g | Packaging | Box |
| Lead Style | Pin | Height (Max) | 0.689" (17.50mm) |
| Mounting Type | Through Hole | Package / Case | 17.5 mm |
| Length - Overall | 18 mm | Size / Dimension | 16 mm W x 18 mm L x 17.5 mm H |
| Termination Style | Through Hole | Supplier Device Package | OPEN |
Product Info
| Type | Common Mode Choke | Design | HORIZONTAL |
| Series | PLA10AS | Technology | AC LINE |
| Configuration | Dual | Number of Lines | 2 |
Environmental
| Temperature - Test | -25 °C | Operating Temperature | -25 to 60 °C |
