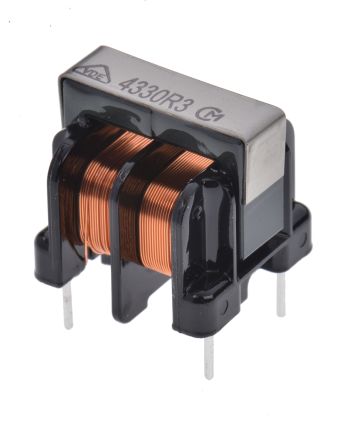

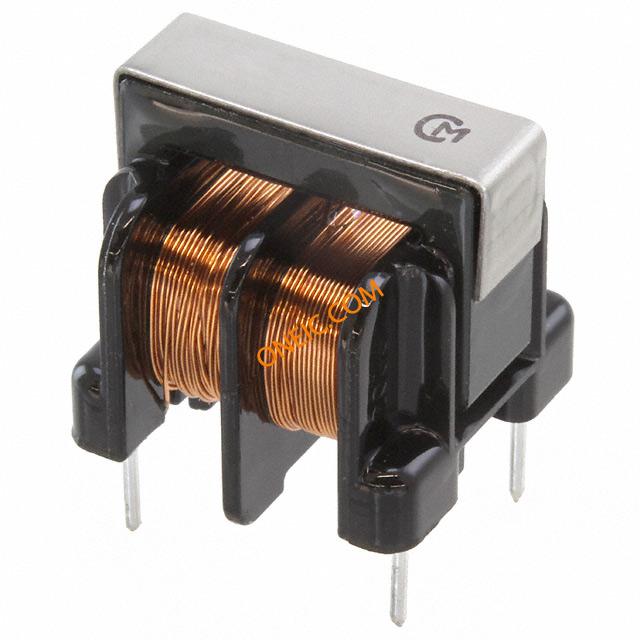

PLA10AS4330R3R2B
| Manufacturer | |
| Description | Ind Common Mode Choke 43mH 300mA Pin Box Common Mode Filters / Chokes 43mH 0.3A 250volt Common Mode Chokes Dual 43mH 300mA Thru-Hole Box COMMON MODE CHOKE 43MH .3A T/H Murata PLA10 系列 43 mH 共模扼流圈, 300mA Idc, 100MΩ Rdc PLA10AS 2X43mH 250VAC 0,3A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chokes | Lead Time | 119 Days |
| Subcategory | Common Mode Chokes | Standard Package | Bulk |
| Factory Pack Quantity | 1260 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Current | 300mA | Inductance | 43 mH |
| Filter Type | Power Line | Voltage Rating | 250V |
| Current - Output | 300 mA | Inductance Range | 43 mH |
| Voltage - Breakdown | 2.4kV | Current Rating (Max) | 300 mA |
| Insulation Resistance | 100M | Resistance - 25degC (Typ) | 100MΩ |
| Resistance - Initial (Ri) (Min) | 100 mOhms | ||
Mechanical
| Depth | 16 mm | Width | 16 mm |
| Height | 17.5 mm | Length | 18mm |
| Weight | 6.8 g | Packaging | Box |
| Lead Style | Pin | Wire Gauge | 0.9mm |
| Height (Max) | 0.689" (17.50mm) | Mounting Type | Through Hole |
| Package / Case | 17.5 mm | Length - Overall | 18 mm |
| Size / Dimension | 16 mm W x 18 mm L x 17.5 mm H | Pitch - Connector | 10 mm, 13 mm |
| Termination Style | Through Hole | Supplier Device Package | OPEN |
Product Info
| Type | Common Mode Choke | Design | HORIZONTAL |
| Series | PLA10 | Function | Y |
| Technology | AC LINE | Configuration | Dual |
| Number of Lines | 2 | ||
Environmental
| Temperature - Test | -25 °C | Operating Temperature | -25 to 60 °C |
