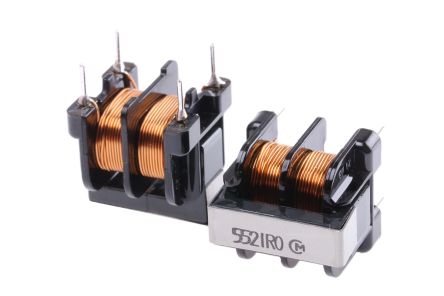

PLA10AN5521R0R2B
| Manufacturer | |
| Description | Common Mode Filters / Chokes 1.0 AMP AC COMMON CH Common Mode Chokes Dual 5.5mH 1A Thru-Hole Box PLA10AN 2X5,5mH 300VAC 1000mA COMMON MODE CHOKE 5.5MH 1A T/H CHOKE, COMMON MODE, 2X5.5MH, 1.0A Murata PLA10 系列 5.5 mH 共模扼流圈, 1A Idc, 100MΩ Rdc |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1260 | Product | Chokes |
| Lead Time | 119 Days | Unit Pack | 1260 |
| Subcategory | Common Mode Chokes | Product Category | Common Mode Filters / Chokes |
| Standard Package | 1,260 | Factory Pack Quantity | 1260 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045020 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Current | 1A | Core Type | :Common / Asymmetrical |
| Inductance | 5.5 mH | Filter Type | Power Line |
| Range deg/s | :MURATA - PLA10 Series | Voltage Rating | 300V |
| Current - Output | 1000mA | Inductance Range | :5.5mH |
| Current Rating - DC | :1A | Voltage - Breakdown | 2.4kV |
| Current Rating (Max) | 1 A | Insulation Resistance | :100Mohm |
| Current - On State (It (RMS)) (Max) | :1A | ||
Mechanical
| Depth | :16mm | Width | 16 mm |
| Height | 17.5mm | Length | 18mm |
| Weight | 0.008 | Packaging | Bulk |
| Shielding | Unshielded | Height (Max) | 0.689" (17.50mm) |
| Mounting Type | Through Hole | Number of Pins | :4 |
| Package / Case | 17.5 mm | Length - Overall | 18 |
| Size / Dimension | 16 mm W x 18 mm L x 17.5 mm H | Termination Style | Through Hole |
| Diameter - Outside | :1.2mm | Dimensions - Overall | :18mm x 16mm x 17.5mm |
| Supplier Device Package | OPEN | ||
Product Info
| Design | HORIZONTAL | Series | PLA10 |
| Matchcode | INDK2X5500U1A | Technology | AC LINE |
| Configuration | Dual | Number of Lines | 2 |
| Industry Aliases | PLA10A5521R0R02B1 | Standard Leadtime | 16 weeks |
Environmental
| Temperature - Test | -25°C | Operating Temperature | - 25 C to + 120 C |
