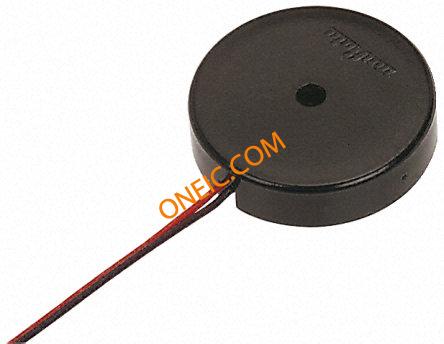

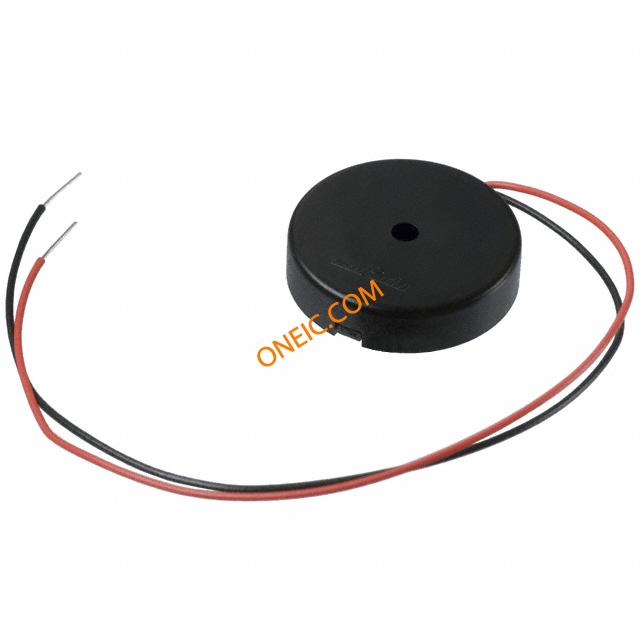

PKM17EWH4000
| Manufacturer | |
| Description | Audio Sounder Piezo 3Vp-p Wire Lead PKM17EWH 4,0KHz 17MM 100mmLEADS BUZZER PIEZO 25VP-P 4KHZ WIRE Transducer piezo PCB 3Vpp 75dB OBSOLETE LTB:31.Oct.2015 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1000 | Lead Time | 70 Days |
| Unit Pack | 500 | Other Names | 490-4696 |
| Subcategory | Audio Indicator and Alerts | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Frequency | 4kHz | Drive Type | External |
| Input Type | peak-peak Signal | Voltage Range | 25V (Max) |
| Operating Mode | Continuous | Voltage Rating | 3 Vp-p |
| Frequency - Max | 4000(Typ) Hz | Output Function | External Drive |
| Driver Circuitry | Transducer, Externally Driven | Voltage - Supply | 25V ac |
| Voltage - Supply (Min) | 25Vp-p | Capacitance @ Frequency | 9500pF @ 1kHz |
| Sound Pressure Level (SPL) | 75 dBA | ||
Mechanical

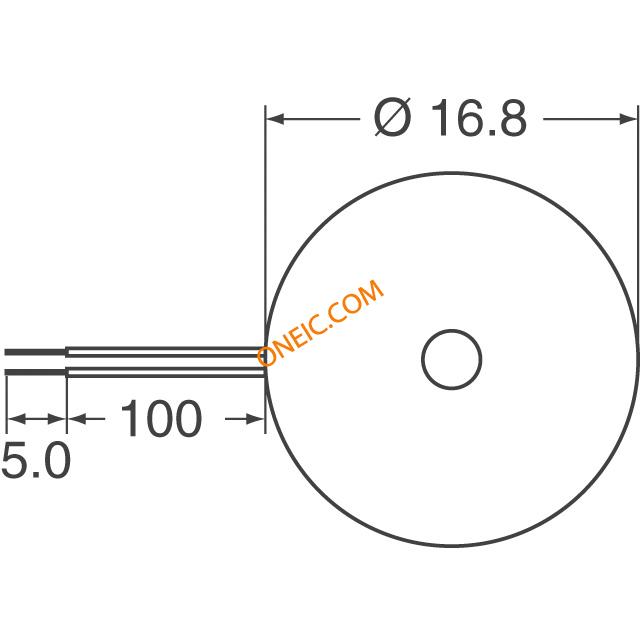

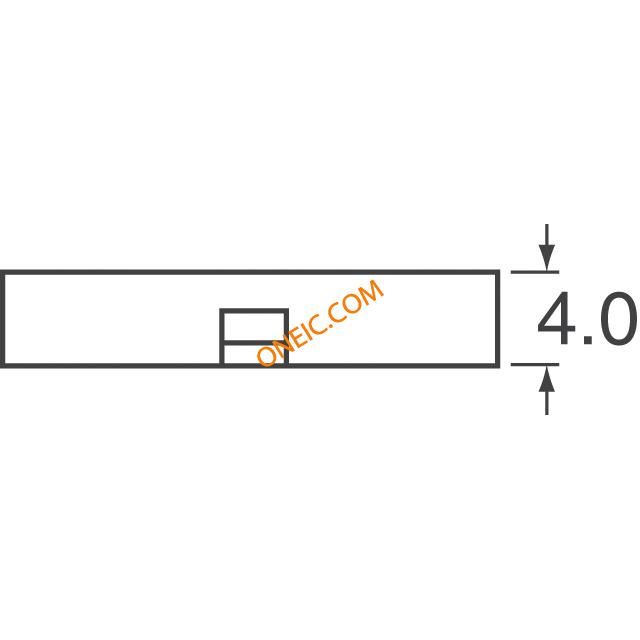

| Height | 4 mm | Diameter | 16.8 mm |
| Packaging | Bulk | Termination | Wire Lead |
| Length - Pin | 100mm | Mounting Type | WIRE |
| Length - Overall | 17mm | Size / Dimension | Circular - 16.80mm Dia x 4.00mm H |
| Number of Contacts | 2 | Exterior Housing Material | YESy/n |
Product Info
| Type | Sounder | Series | PKM |
| DELETED | Compliant | Washable | No |
| Matchcode | SIGL4,0KO | Technology | Piezo |
| Standard Leadtime | 14 weeks | Other Specifications | NO |
Environmental
| Temperature - Test | -20°C | Operating Temperature | -20°C ~ 70°C |
