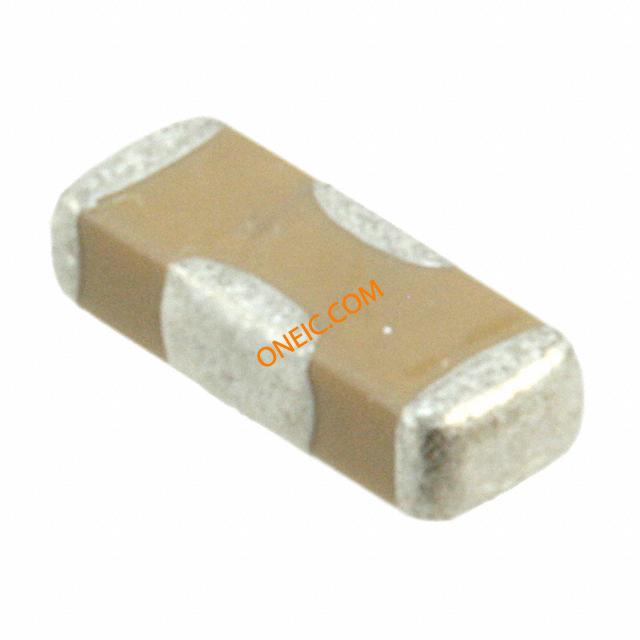

NFM3DPC223R1H3L
| Manufacturer | |
| Description | EMI Filter 2A 50VDC Flat Style SMD Embossed T/R EMI Filter C-Circuit 2A 50VDC Flat Style SMD Embossed T/R NFM3DP 22nF +/-20% 50V 2A FILTER LC HIGH FREQ 22000PF 1206 Murata 50V dc 2A SMD Signal Filter 3.2 x 1.25 x 0.7mm FILTER, SUPPRESSION, EMI, 1206 CASE FILTER, SUPPRESSION, 1206, 22NF, 50VDC Ferrite SMD 2 A 0.05 Ohm 1206, NFM3DPC223R1H3L, Murata Murata NFM3DP 系列 50 V 直流 2A 信号滤波器 SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 20000 | Lead Time | 49 Days |
| Unit Pack | 4000 | Other Names | 490-6985-1 |
| Subcategory | EMI Filter | Standard Package | Tape & Reel |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85363010 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Current | 2A | Voltage | 50V |
| Tolerance | 50% | Capacitance | 22000pF |
| Filter Type | :EMI, RFI | Voltage Rating | 50V |
| DC Resistance (DCR) | 50 mOhm Max | Current Rating (Max) | 2 A |
| Voltage - Input (Min) | 50 Vdc | Voltage - Supply (Min) | 50VDC |
Mechanical
| Size | 1205Inch | Depth | 1.25mm |
| Height | 0.7mm | Length | 3.2mm |
| Weight | 0.00001 | Packaging | Embossed Tape and Reel |
| Termination | Flat Style | Height (Max) | 0.035" (0.90mm) |
| Mounting Type | Surface Mount | Connector Type | :Surface Mount |
| Mounting Style | Surface Mount | Package / Case | 1205 |
| Length - Overall | 3.2 mm | Size / Dimension | 0.126" L x 0.049" W (3.20mm x 1.25mm) |
| Termination Style | Solder Pad | ||
Product Info
| Type | EMI Suppression Filter | Series | NFM3DP |
| DELETED | Compliant | Matchcode | EMIC22N1205 |
| Standard Leadtime | 14 weeks | RF Family/Standard | NFM3DP |
Environmental
| Temperature - Test | -55°C | Operating Temperature | -55 °C |
| Operating Temperature - Junction | 125C | ||
