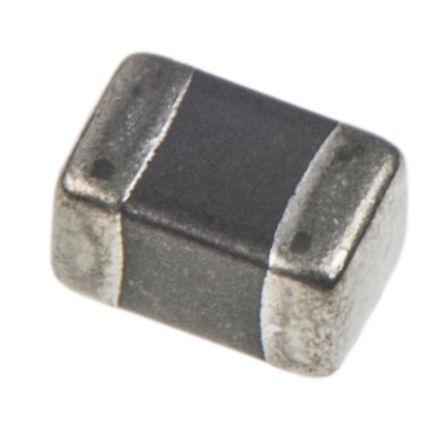

LQM21FN100M70L
| Manufacturer | |
| Description | Ind Power Chip Shielded Multi-Layer 10uH 20% 1MHz Ferrite 100mA 0805 Embossed T/R LQM21FN 10uH 100mA 20% MLT INDUCTOR 10UH 100MA 0805 Power inductor SMD 0805 10uH Fixed Inductors 10uH Power Supply Choke Inductor Power Chip Shielded Multi-Layer 10uH 20% 1MHz Ferrite 100mA 600mOhm DCR 0805 Embossed T/R Murata LQM21F 系列 10 �H ±20% 多层贴片式电感器, 0805封装, SRF: 0.015GHz 100mA dc 600mΩ Rdc |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Product | Inductors |
| Lead Time | 49 Days | Unit Pack | 3000 |
| Other Names | 490-4029-2 | Subcategory | Inductor Surface Mount |
| Product Category | Fixed Inductors | Standard Package | Tape & Reel |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Military Standard | Not Required |
| Protection Features | Shielded | ||
Electrical
| Impedance | Not Required ohm | Tolerance | 20 % |
| Inductance | 10 uH | Test Frequency | 1MHz |
| Current - Output | 100mA | Voltage - Supply | 15MHz |
| DC Resistance (DCR) | 0.6Ohm | Current Rating (Max) | 100 mA |
| Frequency - Self Resonant | 15MHz | Current - DC Forward (If) (Max) | 100 mA |
| Resistance - Initial (Ri) (Min) | 600(Typ) mOhm | ||
Mechanical
| Size | 0805Inch | Depth | 1.25mm |
| Width | 1.25mm | Height | 1.45 mm |
| Length | 2mm | Weight | 0.016gr |
| Diameter | Not Required mm | Packaging | Embossed Tape and Reel |
| Shielding | Shielded | Core Material | Ferrite |
| Mounting Type | SMD | Package / Case | 0805 |
| Length - Overall | 2.2 mm | Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Termination Style | SMD/SMT | Height - Seated (Max) | 0.057" (1.45mm) |
| Supplier Device Package | 0805 (2012 Metric) | ||
Product Info
| Type | Power Chip | Design | SHIELDED |
| Series | LQM21F | DELETED | Compliant |
| Matchcode | INDC10U0805 | Technology | Multi-Layer |
| Failure Rate | Not Required | Standard Leadtime | 18 weeks |
Environmental
| Temperature - Test | -55°C | Operating Temperature | -55°C ~ 125°C |
