ECASD60D477M006K00
| Manufacturer | |
| Description | Aluminum Organic Polymer Capacitors 470uF 2.0volts 2.8mm ESR 6 mOhms ECASD60D477M006K00 CAP ALUM 470UF 2V 20% SMD CAP, POLYMER, 2V, 470UF Polymer capacitor 470 uF 2 VDC, ECASD60D477M006K00, Murata |
| Category |
Business
| MOQ | 2500 | Product | Organic Polymer Aluminum - SMD Capacitors |
| Unit Pack | 2500 | Product Category | Aluminum Organic Polymer Capacitors |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85322400 | ||
Electrical
| Tolerance | 20 % | Capacitance | 470 uF |
| Range deg/s | :MURATA - ECAS Series | Voltage Rating | 2 V |
| Capacitance - Input | :2917 [7343 Metric] | Ripple Current @ High Frequency | 3.5 A |
| ESR (Equivalent Series Resistance) | 6 mOhms | ||
Mechanical
| Width | 4.3 mm | Height | 1.9 mm |
| Weight | 0.0002 | Packaging | Reel |
| Package / Case | 7.3 mm | Size / Dimension | 7.3 mm L x 4.3 mm W x 1.9 mm H |
| Termination Style | SMD/SMT | Mounting Hole Diameter | 2917 |
Product Info
| Product Type | Molded | ||
Environmental
| Rated Life | :1000 hours @ 105°C | Operating Temperature | - 40 C to + 105 C |
Documents & Media
Similar Parts

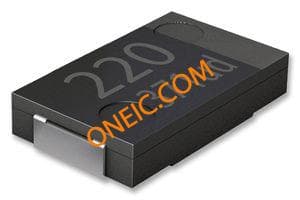

EEFSX0D471E4
Panasonic Corporation
Cap Aluminum 470uF 2V 20% (7.3 X 4.3 X 1.9mm) SMD 0.0045 Ohm 4000mA 1000 hr 105°C Embossed T/R Cap Aluminum 470uF 2V 20% (7.3 X 4.3 X 1.9mm) SMD 0.0045 Ohm 3800mA 1000 hr 105C Embossed T/R CAP, ALU ELEC, 470UF, 2V, SMD Panasonic SP-Cap SX 系列 470μF 2 V 直流 聚合体 铝聚合物电容器 , ±20%容差, 4.5mΩ
EEFSX0D471XE
Panasonic Corporation
Cap Aluminum 470uF 2V 20% (7.3 X 4.3 X 1.9mm) SMD 0.006 Ohm 3500mA 1000 hr 105°C Embossed T/R Panasonic 470μF ±20% 0.006Ω 2V dc SMD Aluminium Electrolytic Capacitor CAP, ALU ELEC, 470UF, 2V, SMD Panasonic SP-Cap SX 系列 470μF 2 V 直流 聚合体 铝聚合物电容器 , ±20%容差, 6mΩ
EEFCX0D471R
Panasonic Corporation
Cap Aluminum 470uF 2V 20% (7.3 X 4.3 X 1.9mm) SMD 0.015 Ohm 2700mA 1000 hr 105°C Embossed T/R CX/2V/470uF/7,3x4,3x1,9mm/ESR0,015Ohm Panasonic 470μF ±20% 0.015Ω 2V dc SMD Aluminium Electrolytic Capacitor CAP, ALU ELEC, 470UF, 2V, SMD Panasonic CX 系列 470μF 2 V 直流 聚合体 铝聚合物电容器 , ±20%容差, 15mΩ
