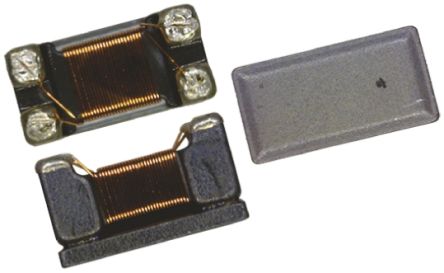

DLW31SN222SQ2L
| Manufacturer | |
| Description | Ind Common Mode Choke Wirewound 2.2KOhm 25% 100MHz 200mA 1206 Embossed T/R Common Mode Chokes Dual 2.2kOhm 100MHz 200mA 1.2Ohm DCR SMD Embossed T/R DLW31SN 2200R/100MHz 50V 200mA CHOKE COMMON MODE 2200 OHM 1206 Common mode choke SMD 1206 80mA 2200R Common Mode Filters / Chokes 1206 2200ohm 50volt DCR 1.2ohm CHOKE, COMMON MODE, 2200OHM, 100MHZ Murata DLW31S 系列 绕线贴片电感器 ±25%, 200mA Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2000 | Product | Common Mode Chokes |
| Lead Time | 63 Days | Unit Pack | 2000 |
| Other Names | 490-1070-1 | Subcategory | Common Mode Chokes |
| Part # Aliases | PLW3216S222SQ2 | Product Category | Common Mode Filters / Chokes |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045020 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Military Standard | Not Required |
Electrical
| Current | 200mA | Core Type | :Wirewound |
| Impedance | 2.2 KOhm | Tolerance | 25 % |
| Inductance | L X2µH | Filter Type | Data, Signal Line |
| Range deg/s | :MURATA - DLW31S Series | Test Frequency | 100MHz |
| Voltage Rating | 50VDC | Current - Output | 200mA |
| Inductance Range | :- | Current Rating - DC | :200mA |
| DC Resistance (DCR) | 1.2Ohm | Voltage - Breakdown | 125VDC |
| Current Rating (Max) | 200 mA | Impedance @ Frequency | :2200ohm |
| Insulation Resistance | 10M | DC Resistance (DCR) (Max) | :1.2ohm |
| Frequency - Self Resonant | :100MHz | Current - DC Forward (If) (Max) | 200 mA |
| Resistance - Initial (Ri) (Min) | 1.2 Ohm | ||
Mechanical
| Size | 1206 | Depth | 1.8 mm |
| Width | 1.6mm | Height | 2.1 mm |
| Length | 3.2mm | Weight | 0.001376 oz |
| Diameter | Not Required mm | Packaging | Embossed Tape and Reel |
| Shielding | Unshielded | Height (Max) | 0.083" (2.10mm) |
| Core Material | :- | Mounting Type | Surface Mount |
| Number of Pins | :4 | Package / Case | 1206 |
| Length - Overall | 3.4 mm | Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Termination Style | SMD/SMT | Dimensions - Overall | :3.2mm x 1.6mm x 1.9mm |
Product Info
| Type | Common Mode Choke | Series | DLW31S |
| Matchcode | INDK2200R1206 | Technology | Wirewound |
| Failure Rate | Not Required | Configuration | Dual |
| Number of Lines | 2 | Industry Aliases | PLW3216S222SQ2T1 |
| Standard Leadtime | 16 weeks | ||
Environmental
| Temperature - Test | -40°C | Operating Temperature | -40°C ~ 85°C |
