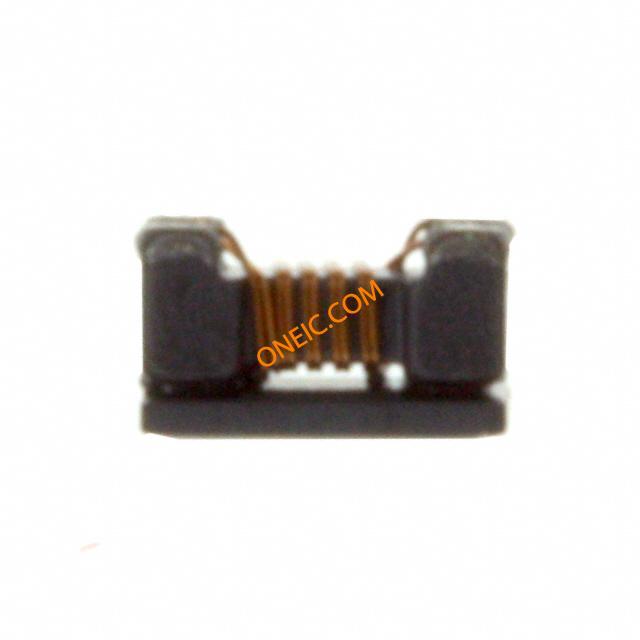

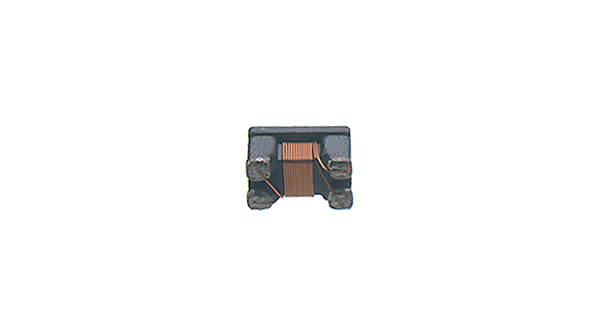

DLW21SN900SQ2L
| Manufacturer | |
| Description | Ind Common Mode Choke Wirewound 90Ohm 25% 100MHz 330mA 0805 Embossed T/R Common Mode Chokes Dual 90Ohm 100MHz 330mA SMD Embossed T/R DLW21SN 90R/100MHz 50V 330mA CHOKE COIL COMMON MODE 330MA SMD Common mode choke SMD 0805 330mA 90R Common Mode Filters / Chokes 0805 90ohm@100MHz Tol 25% Common Mode Chokes Dual 90Ohm 100MHz 330mA 350mOhm DCR SMD Embossed T/R CHOKE, COMMON MODE, 90OHM, 100MHZ Inductor, SMD 330 mA, DLW21SN900SQ2L, Murata Murata DLW21S 系列 绕线贴片电感器 ±25%, 330mA Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2000 | Product | Common Mode Chokes |
| Lead Time | 70 Days | Unit Pack | 2000 |
| Other Names | 490-5137-2 | Subcategory | Common Mode Chokes |
| Product Category | Common Mode Filters / Chokes | Standard Package | Tape & Reel, Cut Tape |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045020 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Military Standard | Not Required |
Electrical
| Current | 330mA | Core Type | :Wirewound |
| Impedance | 90 Ohm | Tolerance | 25 % |
| Inductance | L X2µH | Filter Type | Data, Signal Line |
| Range deg/s | :MURATA - DLW21S Series | Test Frequency | 100MHz |
| Voltage Rating | 50VDC | Current - Output | 330mA |
| Inductance Range | :- | Current Rating - DC | :330mA |
| DC Resistance (DCR) | 0.35Ohm | Voltage - Breakdown | 125VDC |
| Current Rating (Max) | 330 mA | Impedance @ Frequency | :90ohm |
| Insulation Resistance | 10M | DC Resistance (DCR) (Max) | :0.35ohm |
| Frequency - Self Resonant | :100MHz | Current - DC Forward (If) (Max) | 330 mA |
| Resistance - Initial (Ri) (Min) | 350 mOhm | ||

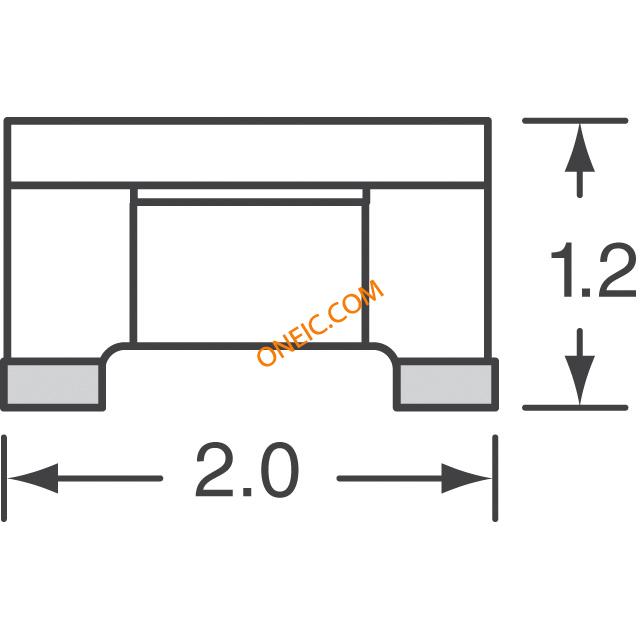

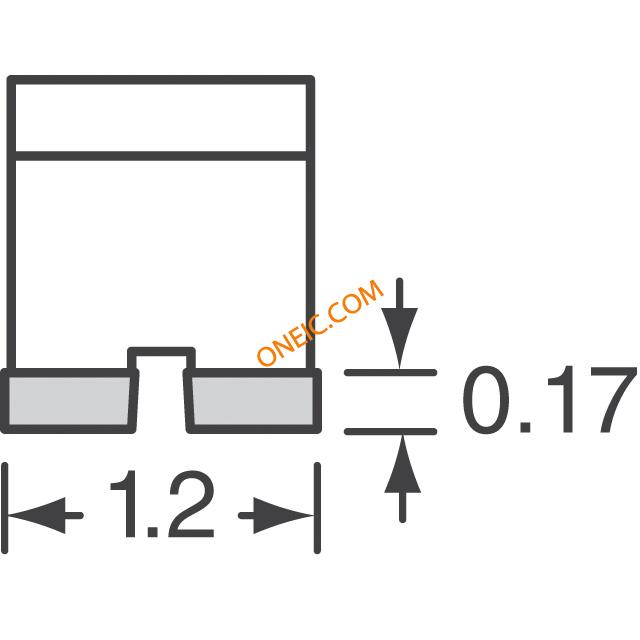

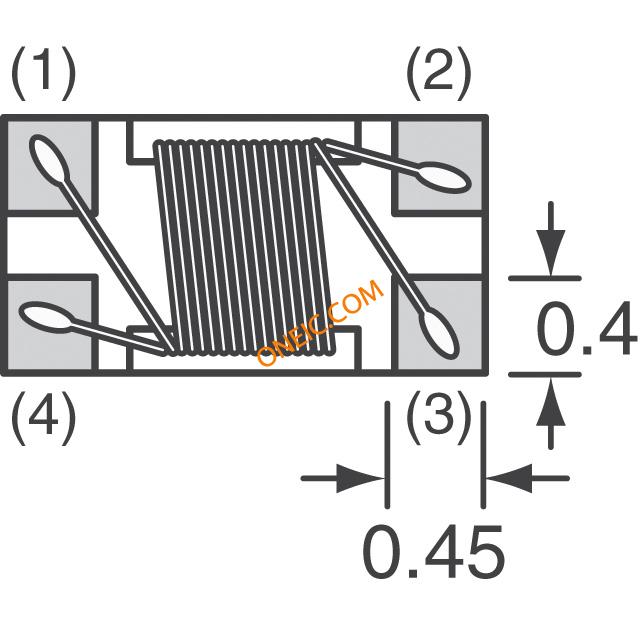

Mechanical
| Size | 0805Inch | Depth | 1.2mm |
| Width | 1.2 mm | Height | 1.4 mm |
| Length | 2mm | Weight | 0.000388 oz |
| Diameter | Not Required mm | Packaging | Embossed Tape and Reel |
| Shielding | Unshielded | Height (Max) | 0.055" (1.40mm) |
| Core Material | :- | Mounting Type | Surface Mount |
| Number of Pins | :4 | Package / Case | 0805 |
| Length - Overall | 2 mm | Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Termination Style | SMD/SMT | Dimensions - Overall | :2mm x 1.2mm x 1.2mm |
Product Info
| Type | Common Mode Choke | Series | DLW21H |
| Matchcode | INDK90R0805 | Technology | Wirewound |
| Failure Rate | Not Required | Configuration | Dual |
| Number of Lines | 2 | Standard Leadtime | 16 weeks |
Environmental
| Temperature - Test | -40°C | Operating Temperature | -40°C ~ 85°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
