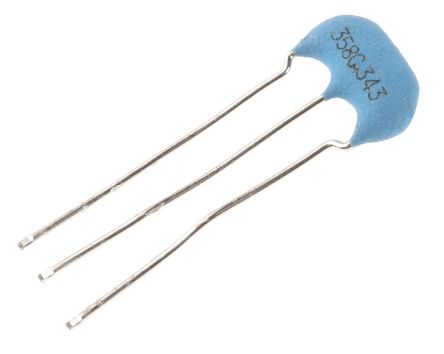

CSTLS3M58G53-B0
| Manufacturer | |
| Description | LEADED,5.5X8,CMOS,W/ CAP,0.5%,-20+80,3.5800MHZ,BULK Ceramic Resonator 3.58MHz ±0.5% (Tol) ±0.2% (Stability) 15pF 50Ohm 3-Pin Thru-Hole Bulk CSTS0358MG03 CER RESONATOR 3.58MHZ CSTLS3M58G53-B0, Ceramic Resonator, 3.58MHz 15pF, 3-Pin Resonators 3.58MHz 0.5% Ceramic Resonator 3.58MHz ?0.5% (Tol) ?0.2% (Stability) 15pF 50Ohm 3-Pin Thru-Hole Bulk Murata 3.58MHz 陶瓷谐振器, 剪切模式, 15pF负载, 3针 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 500 | Lead Time | 42 Days |
| Tradename | CERALOCK | Unit Pack | 500 |
| Subcategory | Resonator | Product Category | Resonators |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 3.58MHz | Impedance | 50 Ohm |
| Tolerance | 0.5 % | Resistance | 50Ω |
| Capacitance | 15pF | Oscillator Type | 剪切 |
| Load Capacitance | 15pF | Frequency Stability | ±0.2% |
| Frequency Tolerance | ±0.5% | Frequency - Self Resonant | 3.58MHz |
| Resistance - Initial (Ri) (Min) | 50Ω | ||
Mechanical
| Width | 3mm | Height | 0.236" (6.00mm) |
| Length | 8mm | Packaging | Bulk |
| Mounting Type | Through Hole | Number of Pins | 3 |
| Package / Case | Radial - 3 Lead, 2.50mm Pitch | Length - Overall | 8 |
| Size / Dimension | 0.315" L x 0.118" W (8.00mm x 3.00mm) | Termination Style | Through Hole |
| Number of Positions | 3 | ||
Product Info
| Type | Ceramic | Series | CSTLS |
| Features | Built in Capacitor | Function | Y |
| Industry Aliases | CSTS0358MG03 | Printed Circuit Board | 3 |
Environmental
| Operating Temperature | -20°C ~ 80°C | ||
