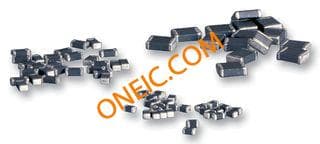

BLM41PG750SN1L
| Manufacturer | |
| Description | EMI Filter 3A Flat Style SMD Ferrite Beads Chip Bead 75Ohm 100MHz 3.5A 1806 Embossed T/R BLM41PG 75R 3000mA Rdc=0,02R FILTER CHIP 75 OHM 3A 1806 Ferrite bead SMD 1806 75R EMI Filter Beads, Chips & Arrays 1806 75 OHM INDUCTOR, SMD, 75Z Ferrite: bead; Imp.@ 100MHz:75Ω; Mounting: SMD; 3A; Case:1806 Ferrite SMD 3 A 0.025 Ohm 1806, BLM41PG750SN1L, Murata Murata BLM41PG 系列 铁氧体磁珠, 75Ω阻抗 @ 100 MHZ, 1806封装, 适用于电源 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2500 | Product | Ferrite Chip Beads |
| Lead Time | 20 Days | Unit Pack | 2500 |
| Other Names | 490-4013-2 | Subcategory | Ferrite Beads |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | Cut Tape |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045020 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Core Type | :Ferrite Bead | Impedance | 75Ohm |
| Tolerance | 25 % | Resistance | 0.025Ω |
| Filter Type | Differential Mode - Single | Range deg/s | :MURATA - EMIFIL BLM41P Series |
| Test Frequency | 100MHz | Current - Output | 3000mA |
| Current Rating - DC | :3.5A | DC Resistance (DCR) | 25 mOhm Max |
| Current Rating (Max) | 3 A | Impedance @ Frequency | 75 Ohm @ 100MHz |
| DC Resistance (DCR) (Max) | :0.015ohm | Resistance - Initial (Ri) (Min) | 25 mOhms |
Mechanical
| Size | 1806 | Depth | 1.6mm |
| Width | 1.6mm | Height | 1.6mm |
| Length | 4.5mm | Weight | 0.002 |
| Packaging | Embossed Tape and Reel | Termination | Flat Style |
| Height (Max) | 0.071" (1.80mm) | Core Material | :Ferrite |
| Mounting Type | Surface Mount | Mounting Style | Surface Mount |
| Number of Pins | :2 | Package / Case | 1806 |
| Material - Core | bead | Length - Overall | 4.5 mm |
| Mounting Feature | :SMD | Package Quantity | 100 |
| Size / Dimension | 0.177" L x 0.063" W (4.50mm x 1.60mm) | Termination Style | SMD/SMT |
Product Info
| Spg | 100 | Type | EMI Suppression Filter |
| Series | BLM41P | Matchcode | FEC75R1806 |
| Number of Units | 1 | Industry Aliases | BLM41P750SPT |
| Standard Leadtime | 10 weeks | RF Family/Standard | BLM41P |
| Application Specifics | EMI Suppression, Power Line | ||
Environmental
| Temperature - Test | -55°C | Operating Temperature | -55 °C |
| Operating Temperature - Junction | 125C | ||
