BLM18PG121SN1D
| Manufacturer | |
| Description | Ind Chip Bead 120Ohm 25% 100MHz Ferrite 2A 0603 Paper T/R Ferrite Beads Chip 120Ohm 25% 100MHz 2A 50mOhm DCR 0603 Paper T/R BLM18PG 120R 2000mA Rdc=0,05R FERRITE CHIP 120 OHM 2000MA 0603 Ferrite bead SMD 0603 120R 2A EMI Filter Beads, Chips & Arrays 0603 120 OHM Ferrite Beads Chip Bead 120Ohm 25% 100MHz 2A 0603 Paper T/R FERRITE, BEAD, 0603, 0.05OHM, 2A Ferrite: bead; 120Ω; Mounting: SMD; 2A; Case:0603; -55÷125°C Ferrite SMD 2 A 0.05 Ohm, BLM18PG121SN1D, Murata Murata BLM18PG 系列 铁氧体磁珠, 120Ω阻抗 @ 100 MHZ, 0603封装, 适用于EMI 抑制过滤器、电源 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 4000 | Product | Ferrite Chip Beads |
| Lead Time | 42 Days | Unit Pack | 4000 |
| Other Names | 490-1037-1 | Subcategory | Ferrite Beads |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | Tape & Reel |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045020 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Impedance | 120 Ohm | Tolerance | 25 % |
| Inductance | Not Required uH | Filter Type | Differential Mode - Single |
| Test Frequency | 100MHz | Current - Output | 2000mA |
| Current Rating - DC | :2A | DC Resistance (DCR) | 0.05Ohm |
| Current Rating (Max) | 2 A | Impedance @ Frequency | 120 Ohm @ 100MHz |
| DC Resistance (DCR) (Max) | :0.05ohm | Current - DC Forward (If) (Max) | 2000 mA |
| Resistance - Initial (Ri) (Min) | 50 mOhm | ||
Mechanical
| Size | 0603 | Depth | 0.8mm |
| Width | 0.8mm | Height | 0.95 mm |
| Length | 1.6mm | Weight | 0.000005 |
| Diameter | Not Required mm | Material | Ferrite |
| Packaging | Paper Tape and Reel | Height (Max) | 0.037" (0.95mm) |
| Core Material | Ferrite | Mounting Type | SMD |
| Package / Case | 0603 | Material - Core | bead |
| Length - Overall | 1.75 mm | Mounting Feature | :SMD |
| Package Quantity | 4000 | Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Termination Style | SMD/SMT | ||
Product Info
| Spg | 4000 | Type | Chip Bead |
| Series | BLM18P | DELETED | Compliant |
| Matchcode | FEC120R0603 | Failure Rate | Not Required |
| Number of Units | 1 | Standard Leadtime | 11 weeks |
Environmental
| Temperature - Test | -55°C | Operating Temperature | - 55 C to + 125 C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
BLM18KG121TN1D
murata electronics
Ind Chip Bead Multi-Layer 120Ohm 25% 100MHz Ferrite 3A 0603 Paper T/R Ferrite Beads Multi-Layer 120Ohm 25% 100MHz 3A 30mOhm DCR 0603 Paper T/R BLM18KG 120R 3000mA Rdc=0,022R FERRITE CHIP 120 OHM 3000MA 0603 Ferrite bead SMD 0603 120R EMI Filter Beads, Chips & Arrays 0603 120ohms 3A BLM18KG121TN1D FERRITE BEAD, 0603, 120R, 3A Murata BLM18HK 系列 铁氧体磁珠, 120Ω阻抗 @ 100 MHZ, 0603封装, 适用于EMI 抑制过滤器、GHz 频段数字接口
$0.0202
Details

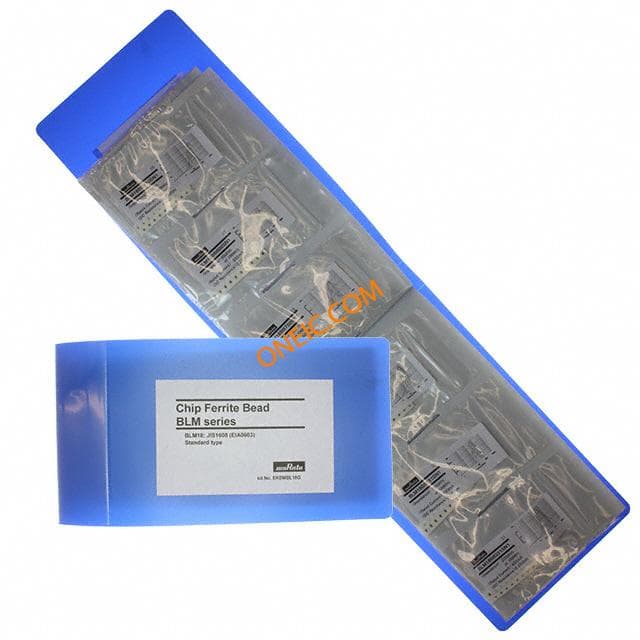

EKEMBL18G
