BLM15HG102SN1D
| Manufacturer | |
| Description | Ind Chip Bead 1KOhm 25% 100MHz Ferrite 250mA 0402 Paper T/R Ferrite Beads Chip 1KOhm 25% 100MHz 250mA 1.1Ohm DCR 0402 Paper T/R BLM15HG 1000R 250mA 1,1R 25% FILTER CHIP 1000 OHM 250MA 0402 Ferrite bead SMD 0402 1K 250mA EMI Filter Beads, Chips & Arrays 0402 1Kohms Tape GHz Band Gen Use Ferrite Beads Chip Bead 1KOhm 25% 100MHz 250mA 0402 Paper T/R FERRITE BEAD, 1.1OHM, 250MA, 0402 Murata BLM15HG 系列 铁氧体磁珠, 1000Ω阻抗 @ 100 MHZ, 0402封装, 适用于EMI 抑制过滤器、GHz 频段通用 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 10000 | Product | Ferrite Chip Beads |
| Lead Time | 42 Days | Unit Pack | 10000 |
| Other Names | 490-3999-2 | Subcategory | Ferrite Beads |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | Tape & Reel |
| Factory Pack Quantity | 10000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045020 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Military Standard | Not Required |
Electrical
| Impedance | 1 KOhm | Tolerance | 25 % |
| Inductance | Not Required uH | Resistance | :1.1ohm |
| Filter Type | Differential Mode - Single | Test Frequency | 100MHz |
| Current - Output | 250mA | Current Rating - DC | :250mA |
| DC Resistance (DCR) | 1.1Ohm | Current Rating (Max) | 250 mA |
| Impedance @ Frequency | 1 kOhm @ 100MHz | DC Resistance (DCR) (Max) | :1.1ohm |
| Current - DC Forward (If) (Max) | 250 mA | Resistance - Initial (Ri) (Min) | 1.1 Ohm |
Mechanical
| Size | 0402 | Depth | 0.5mm |
| Width | 0.5mm | Height | 0.55 mm |
| Length | 1mm | Weight | 0.000001 |
| Diameter | Not Required mm | Packaging | Paper Tape and Reel |
| Height (Max) | 0.022" (0.55mm) | Core Material | Ferrite |
| Mounting Type | SMD | Package / Case | 0402 |
| Length - Overall | 1 mm | Mounting Feature | :SMD |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | Termination Style | SMD/SMT |
Product Info
| Type | Chip Bead | Series | BLM15H |
| Matchcode | FEC1000R0402 | Failure Rate | Not Required |
| Standard Leadtime | 17 weeks | Application Specifics | EMI Suppression, General Electronics |
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
742841210
Wurth Electronics
EMIフィルタ ビーズ、チョーク、アレイ WE-CBF HF Bead 100MHz 1000ohm 50mA FERRITE BEAD 1000 OHM .05A 0402 Multilayer HF Chip Bead 0402 1K0 50mA EMI Filter Beads, Chips & Arrays WE-CBF HF Bead 100MHz 1000ohm 50mA FERRITE BEAD, 1.8OHM, 50MA, 0402 Wurth Elektronik WE-CBF HF 系列 铁氧体磁珠, 1000Ω阻抗 @ 100 MHZ, 0402封装, 适用于高速总线系统、抑制组件
$1.4469
Details

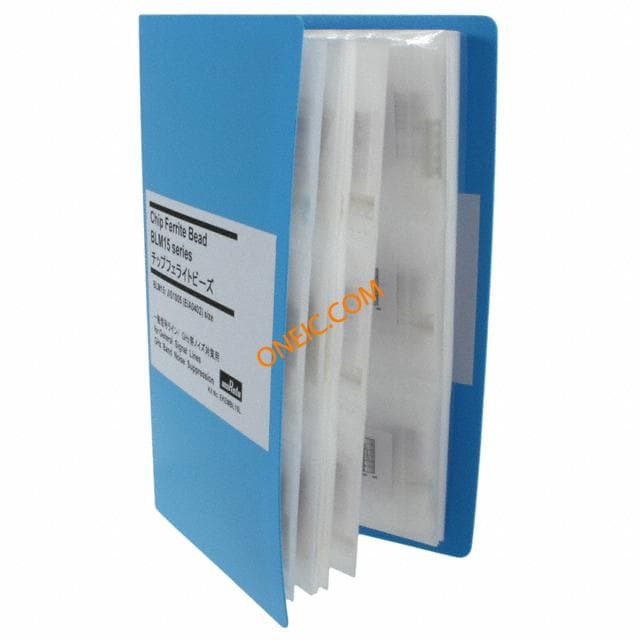

EKEMBL15L
