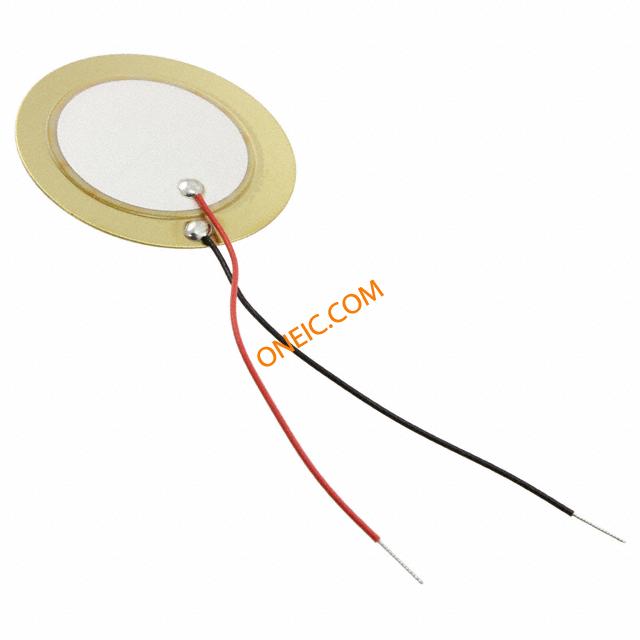

7BB-27-4L0
| Manufacturer | |
| Description | Audio Diaphragm Piezo Wire Lead 4100Hz to 5100Hz 7BB 4,6kHZ 27MM DISC 30mmLEADS BUZZER ELEMENT STD 4.6KHZ Audio Indicators & Alerts 20.0nF +/-30% 4.6kHz +/-0.5%kHz PIEZO SOUNDER Murata 导线安装 隔膜音调 外部驱动 压电蜂鸣器, 最高4.6 kHz |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 600 | Product | Piezoelectric Diaphragms |
| Lead Time | 42 Days | Unit Pack | 600 |
| Other Names | 490-7714 | Subcategory | Audio Indicator and Alerts |
| Product Category | Audio Indicators & Alerts | Standard Package | Bulk |
| Factory Pack Quantity | 600 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :Lead titanium zirconium oxide (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85318095 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Frequency | 4.6kHz | Impedance | 300 Ohm |
| Tolerance | 30% | Capacitance | :26nF |
| Frequency - Max | 5100 Hz | Frequency Range | 4100 to 5100 Hz |
| Output Function | External Drive | Capacitance @ Frequency | 20000pF @ 1kHz |
| Frequency - Self Resonant | :4.6kHz | ||
Mechanical
| Size | 1.06" Dia (27mm) | Height | 0.54 mm |
| Weight | 0.00001 | Diameter | 27 mm |
| Packaging | Bulk | Termination | Wire Lead |
| Length - Pin | 50mm | Mounting Type | DISC |
| Length - Overall | 27mm | Size / Dimension | 0.54 mm H |
| Termination Style | Wire Leads | Diameter - Outside | :27mm |
| Number of Contacts | 2 | Exterior Housing Material | NOy/n |
Product Info
| Type | Diaphragm | Series | 7BB |
| Function | :Diaphragm | Matchcode | SIGM4,6KO |
| Technology | Piezo | Standard Leadtime | 12 weeks |
| Other Specifications | NO | ||
Environmental
| Temperature - Test | -20°C | ||
